Intermatic T1205R

T1205R Product Description

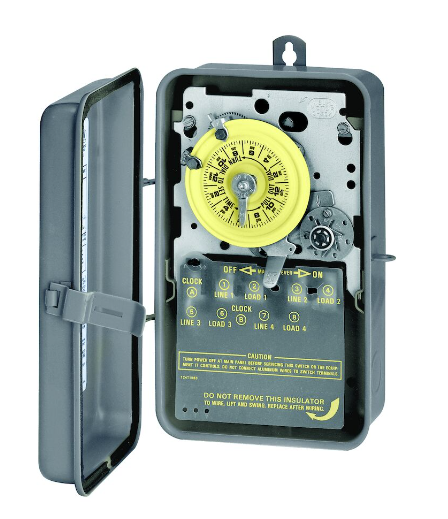

The T100 Series mechanical time switch has proven it can stand the test of time. These dependable time switches can handle electrical loads up to 40 A per pole and allow for up to 12 ON/OFF operations per day. A manual override switch provides added convenience.

Intermatic® Mechanical Timer Switch, Series: T100, 240 VAC, 40 A, 5 hp, 2 Pole, 2NO/DPST Contact Form, NEMA 3R Enclosure, -40 to 130 deg F, Wall Mounting, 10-1/8 in H x 6-1/2 in W x 3-5/8 in D Dimensions

Features:

Direct 24 hr control of most loads
Up to 12 ON/OFF operations each day with minimum ON/OFF times of one hour
Manual override
One ON and one OFF tripper included
Can be installed in most Intermatic enclosures

Specifications:

Amperage Rating : 40 A
Contact Form : 2NO/DPST
Dimensions : 10-1/8 in H x 6-1/2 in W x 3-5/8 in D
Enclosure Type : NEMA 3R
Horsepower : 5 hp
Mounting Type : Wall
Number of Poles : 2
Series : T100
Temperature Rating : -40 to 130 deg F
Voltage Rating : 240 VAC
