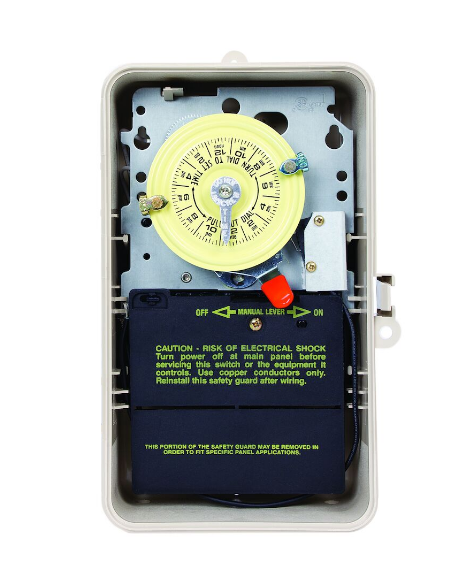

Intermatic T101P201

T101P201 Product Description

Heavy-duty mechanical time switches to control a single load.

Specification:

Model Number T101P201
Description 24-Hour 120V Mechanical Time Switch, SPST, Pool Heater Protection, Type 3R Plastic
Enclosure
UPC Code 078275700574
Brand Intermatic
Country of Origin (Intermatic) MEXICO
Warranty Period 1-Year limited
Control Specifications
Maximum ON/OFF Operations 12
Operation Mode 24 hour
Application Compatibilities LED
Mechanical Specifications
Enclosure Type Outdoor type 3R plastic
Dimensions
Product Dimensions (H x W x D) in 10 x 6.5 x 4 in
Knockout Dimensions Bottom (2) 1/2" and 3/4"
Knockout Dimensions Back 1/2" and 3/4" combination
Electrical Specifications
Heater Control Output 10 A, 250 VAC MAX, 60 Hz
Wiring Option Terminals
Input Voltage Range(s) 120 VAC, 60 Hz
Number of Circuits 1
Switch Type SPST
Maximum Power Consumption (W) 3 W
