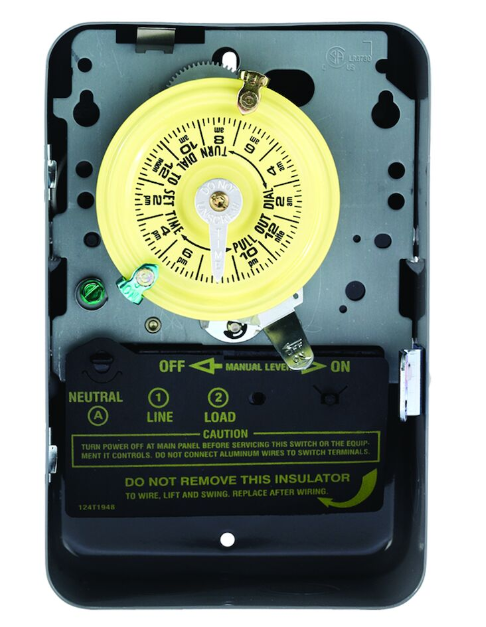

Intermatic T101

T101 Product Description

The T100 Series Mechanical Time Switch has proven it can stand the test of time. These dependable time switches can handle electrical loads up to 40 A per pole and allow for up to 12 ON/OFF operations per day. A manual override switch provides added convenience.

Specification:

Stock Code: T101
Brand: Intermatic
Family: Mechanical Time Switches
Voltage (V): 120V
Amperage: 40 Amps
Amp Rating: 40A
Pole: (1P) Single Pole
Width (in): 5
Height (in): 7.75
Depth (in.): 3
Color: Grey
Housing: NEMA 1 Indoor Steel
HP Rating: 2 HP
Set Points: 1 to 12 On/Off per Day
Sold Separately: Additional Trippers
Switch Type: SPST
Trippers Included: 1 ON & 1 OFF
UL Listed CSA, UL Listed
Case Quantity 1
