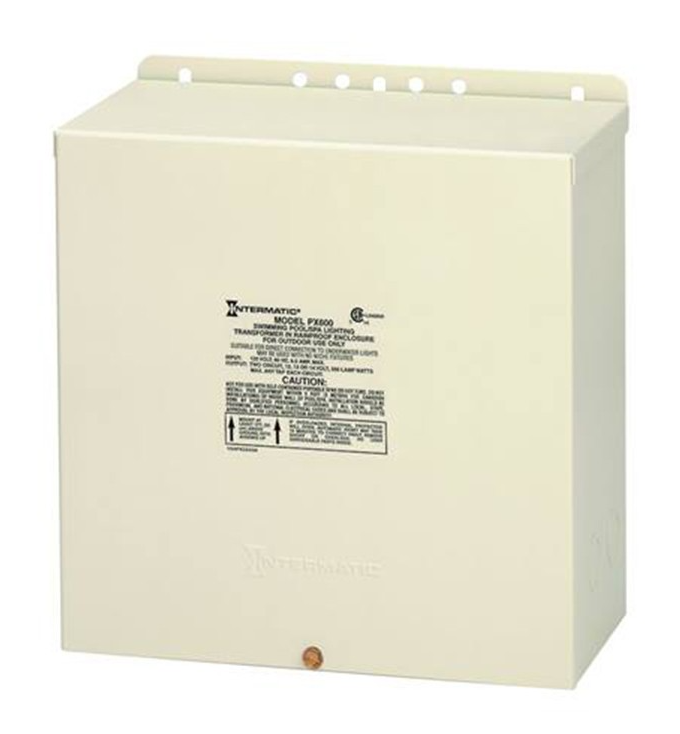

Intermatic PX600

PX600 Product Description

These safety transformers are specifically designed to supply 12-13 VAC and are suitable for direct connection to underwater pool/spa lights. A grounded shield between the primary and secondary winding assures safe operation.

Features:

Mounting brackets on the top and bottom
Built-in circuit protection disconnects power temporarily in case of overload
Complies with NEC Code 680.23 requirements for underwater luminaries

Specifications:

Brand: Intermatic
Part Number: PX600
Enclosure Type: 3R Beige metal
Input Voltages: 6 A, 120 VAC, 60 Hz
Knockout Dimensions Back/Side: (2) combination 1/2" - 3/4"
Knockout Dimensions Bottom: (4) combination 1/2" - 3/4"
Knockout Dimensions Left: (2) combination 1/2" - 3/4"
Knockout Dimensions Right: (2) combination 1/2" - 3/4"
Maximum Power Consumption (W): 600 W
Other Certifications and Compatibilities: NEC Code 680.23
Output Voltages: 12 VAC, 13 VAC, 14 VAC
Product Depth (in): 5.375
Product Depth (mm): 136.5
Product Height (in): 10
Product Height (mm): 254
Product Width (in): 10
Product Width (mm): 254
Transformer Input Voltage: 6 A, 120 VAC, 60 Hz
Transformer Output Voltage: 12, 13, 14 VAC
Transformer (W): 600
Warranty: 1-Year limited
