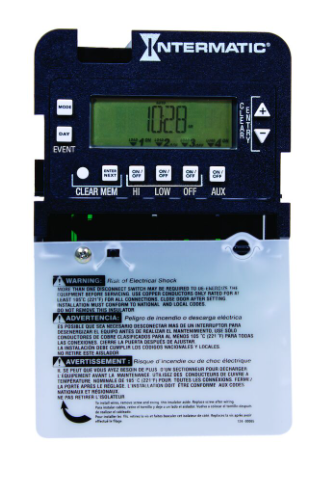

Intermatic P1403ME

P1403ME Product Description

Control single- and two-speed pumps and auxiliary equipment with this 3-circuit programmable device. The seasonal adjustment feature can be programmed to automatically adjust filter pump ON/OFF schedules according to the season.

Specification:

Stock Code: P1403ME
Brand: Intermatic
Family: Time Switch Mechanisms
Voltage (V): 120-277 VAC, 50/60 Hz
Amperage: 30A
Amp Rating: 30A
Wattage (w): 7W
Enclosure Rating: NEMA 3R
Switch Type: 4-SPST
Mounting: Type 3R indoor/outdoor lockable metal enclosure
Motor: 16 FLA, 96 LRA @ 120 VAC , 17 FLA, 80 LRA @ 240 VAC
UL Listed: CSA , CSAus
