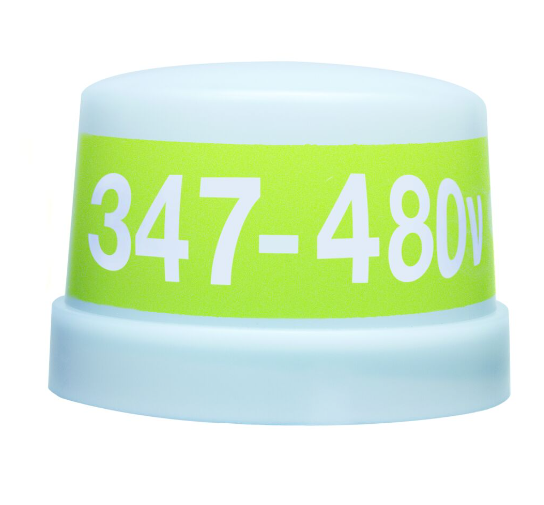

Intermatic LED4537SC

LED4537SC Product Description

Photocontrol specifically designed for 20-year service to match the life expectancy of long-life LED and new induction fixtures.

Features:

Non-drift silicon light sensor with IR filter
DC relay with zero-crossing circuitry for extended life
All components meet 20-year life expectancy
Conformal coated PCB
Exceeds 15,000 ON/OFF switching cycles
Ideal for single or multi-fixture HID and LED installations (up to 2,220 W @ 277 VAC)
685 J MOV surge protection
High precision, microprocessor-controlled zero-cross switching, individually calibrated to extend the life of 20 A relay independent of load being switched

Specifications:

Stock Code LED4537SC
Brand Intermatic
UPC 078275148987
Voltage (V) 347/480 VAC, 50/60 Hz
Amperage Electronic Ballast: 2 A
Amp Rating 2A
Wattage (w) 1000 W
Width (in) Diameter (in): 3.38''
Height (in) 2.75''
Operates Outdoor Lighting Control
Start Temp. (Min) -40°C (-40°F)
Start Temp. (Max) 70°C (158°F)
Material Housing Material: Polypropylene
UL Listed cULus
Warranty 12-Year limited
