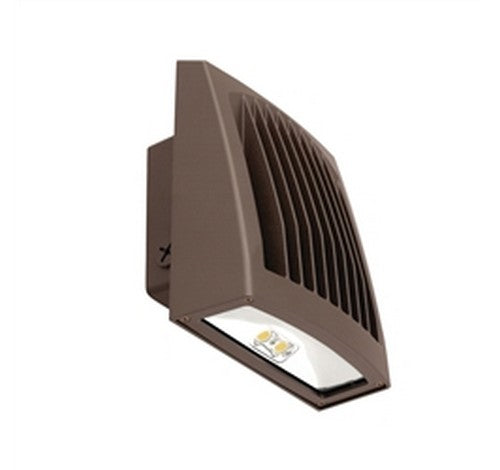

Hubbell Outdoor Lighting SG1-20-4K-PCU 21W Dark Bonze Finish Slender LED Wallpack, 4000K,2310 Lumens, with Photocell, 120-277V

2 sold in last 8 hours
customers are viewing this product
Slender wallpack/floodlight available in two sizes for a variety of applications including building perimeter/security lighting, entrances, stairways, loading docks or facades for schools, apartments or commercial buildings.



Rugged die-cast aluminum housing with corrosion resistant powder coat finish both protects and provides architectural appearance.
Heat dissipating fins provide superior thermal performance extending the life of the electronic components.


120-277V, 50/60Hz electronic drivers
347V and 480V available in larger SG2 housing
10KA surge protection included
LED(s) Optics, CCT:
3000K, 4000K and 5000K CCT nominal with 70 CRI
Smaller SG1 housing has 2 LEDs, larger SG2 housing has 3 LEDS, see page 2 for electrical and photometric data


Impact resistant tempered glass offers zero uplight
Comfort lens available as an option or accessory to reduce glare (7-10% lumen reduction) and provide better uniformity


Side hinge allows for easy installation and wiring.
Side movement avoids damage to the lens and helps prevent injury common in drop down hinge designs.
Mounts to 4" junction box and includes a gasket to help seal electrical connections.
Four 1/2" threaded conduit hubs for surface conduit provided


Button photocontrol for dusk to dawn energy savings. Stock versions include 120V-277V PC with a cover which provides a choice to engage photocontrol or not. PC is installed in top hub.
Occupancy sensor available for on/off and dimming control in larger SG2 housing.
SiteSync wireless lighting control delivers flexible control strategies for reducing power consumption and minimizing maintenance costs while delivering the right light levels with a simple and affordable wireless solution. See ordering information.
Battery backup options available in larger SG2 housing rated for either 0˚ C or -30˚ C. Performance exceeds NEC requirement providing 1 fc minimum over 10'x10' at 11' mounting height
Diffused comfort lens provides glare control and improved uniformity. Available as an option or accessory


DesignLights Consortium (DLC) qualified.
Listed to UL1598 for use in wet location, listed for -40C to 40C applications
IDA approved with zero uplight for 3000K and warmer CCTs


Five year limited warranty
