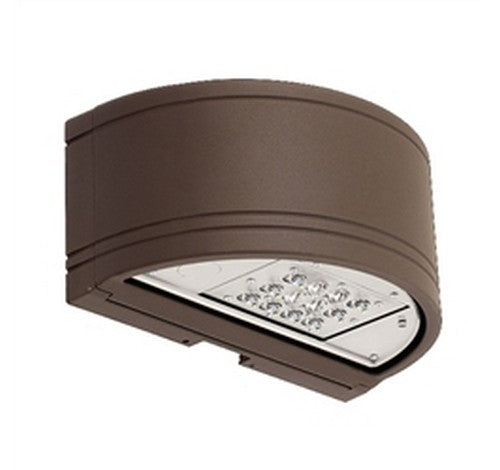

Hubbell Outdoor Lighting RDI1-12L-30-4K7-4-U-DB Dark Bronze Finish 30W Outdoor Round LED Wallpack, 12 LEDs, 4000K, 70 CRI, Type IV Distribution, 2789 Lumens,120-277V
2
sold in last
8
hours
HUBBELL-RDI1-12L-30-4K7-4-U-DB
$470.25
customers are viewing this product
PRODUCT DESCRIPTION
Small sized architectural wallpacks in three stylish shapes with molded contours to accentuate building architecture. Provides excellent illumination in energy-saving LED systems.Back box accessory available for surface conduit application.
SPECIFICATIONS :
Construction:
Housing is made from die-cast aluminum with a hinged back-plate for ease of installation and maintenance.
The LED bezel and trim-plate are made of stainless steel.
Five powder coat standard finishes, plus custom color options.
Wet Location Listed to UL924 and UL1598 Standard.
LED:
12 high power LEDs delivering up to 3,000 lumens.
Up to 118 lumens per watt
Type II, III and IV distributions for a wide variety of applications.
Zero uplight (UO), dark sky, neighbor friendly
Electrical:
120-277 operation, 50/60Hz
0-10V dimming driver standard
10kA surge protector
Photocell and occupancy sensor options available for complete on/off and dimming control
Battery Backup:
Intergral Battery Backup provides emergency lighting for the required 90 minute path of egress.
Includes a long-life Lithium Iron Phosphate battery with optional battery heater for cold temperature application.
Utilizes 4 LEDs in emergency mode with 657 lumens. Each of the 4 LEDs in emergency are designed to function independently in the unlikely event of a single LED malfunction
Spectron self-testing/self-diagnostic electronics are included standard
Independent dedicated driver and LED array for battery/emergency mode operation.
Installation:
Universal plate for mounting to standard 3 1/2” and 4” square electrical boxes. All connections are made from connections at the rear of the unit.
Optional back-box accessory available for surface conduit application. See BB-Geo accessories.
Listings:
UL 1598 listed for use in wet locations
Drivers IP66 and RoHS compliantDesignLights Consortium (DLC) qualified.
SPECIFICATIONS :
Construction:
Housing is made from die-cast aluminum with a hinged back-plate for ease of installation and maintenance.
The LED bezel and trim-plate are made of stainless steel.
Five powder coat standard finishes, plus custom color options.
Wet Location Listed to UL924 and UL1598 Standard.
LED:
12 high power LEDs delivering up to 3,000 lumens.
Up to 118 lumens per watt
Type II, III and IV distributions for a wide variety of applications.
Zero uplight (UO), dark sky, neighbor friendly
Electrical:
120-277 operation, 50/60Hz
0-10V dimming driver standard
10kA surge protector
Photocell and occupancy sensor options available for complete on/off and dimming control
Battery Backup:
Intergral Battery Backup provides emergency lighting for the required 90 minute path of egress.
Includes a long-life Lithium Iron Phosphate battery with optional battery heater for cold temperature application.
Utilizes 4 LEDs in emergency mode with 657 lumens. Each of the 4 LEDs in emergency are designed to function independently in the unlikely event of a single LED malfunction
Spectron self-testing/self-diagnostic electronics are included standard
Independent dedicated driver and LED array for battery/emergency mode operation.
Installation:
Universal plate for mounting to standard 3 1/2” and 4” square electrical boxes. All connections are made from connections at the rear of the unit.
Optional back-box accessory available for surface conduit application. See BB-Geo accessories.
Listings:
UL 1598 listed for use in wet locations
Drivers IP66 and RoHS compliantDesignLights Consortium (DLC) qualified.
