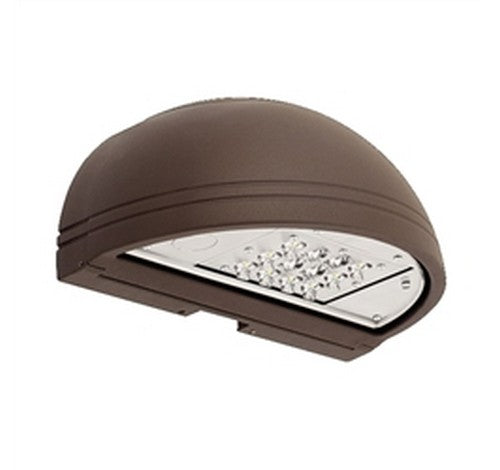

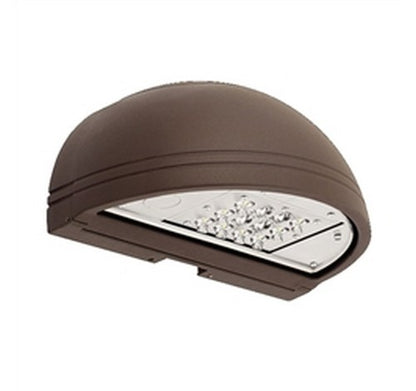

Hubbell Outdoor Lighting QSP1-12L-30-4K7-4-U-DB 30W Dark Bronze Finish Outdoor Quartersphere LED Wallpack, 12 LEDs, 4000K, 70 CRI, Type IV Distribution, 2789 Lumens,120-277V

2 sold in last 8 hours
HUBBELL-QSP1-12L-30-4K7-4-U-DB
$385.61
$385.61
customers are viewing this product
Small sized architectural wallpacks in three stylish shapes with molded contours to accentuate building architecture. Provides excellent illumination in energy-saving LED systems.Back box accessory available for surface conduit application.

SPECIFICATIONS :

Construction:

Housing is made from die-cast aluminum with a hinged back-plate for ease of installation and maintenance.
The LED bezel and trim-plate are made of stainless steel.
Five powder coat standard finishes, plus custom color options.
Wet Location Listed to UL924 and UL1598 Standard.

LED:

12 high power LEDs delivering up to 3,000 lumens.
Up to 118 lumens per watt
Type II, III and IV distributions for a wide variety of applications.
Zero uplight (UO), dark sky, neighbor friendly

Electrical:

120-277 operation, 50/60Hz
0-10V dimming driver standard
10kA surge protector
Photocell and occupancy sensor options available for complete on/off and dimming control

Battery Backup:

Intergral Battery Backup provides emergency lighting for the required 90 minute path of egress.
Includes a long-life Lithium Iron Phosphate battery with optional battery heater for cold temperature application.
Utilizes 4 LEDs in emergency mode with 657 lumens. Each of the 4 LEDs in emergency are designed to function independently in the unlikely event of a single LED malfunction
Spectron self-testing/self-diagnostic electronics are included standard
Independent dedicated driver and LED array for battery/emergency mode operation.

Installation:

Universal plate for mounting to standard 3 1/2” and 4” square electrical boxes. All connections are made from connections at the rear of the unit.
Optional back-box accessory available for surface conduit application. See BB-Geo accessories.

Listings:

UL 1598 listed for use in wet locations
Drivers IP66 and RoHS compliantDesignLights Consortium (DLC) qualified.
Please email us with the products you need and the details of your job at buyriteelectric@gmail.com
Hubbell Outdoor Lighting QSP1-12L-30-4K7-4-U-DB 30W Dark Bronze Finish Outdoor Quartersphere LED Wallpack, 12 LEDs, 4000K, 70 CRI, Type IV Distribution, 2789 Lumens,120-277V
