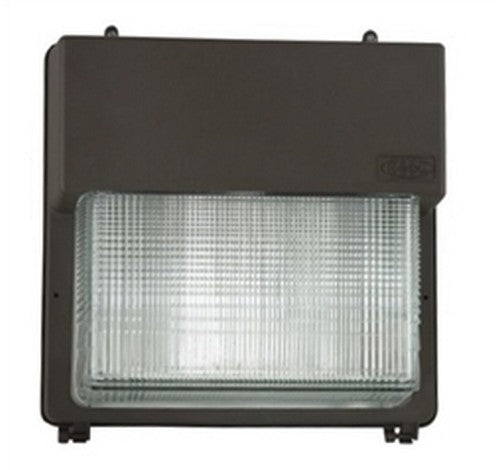

Hubbell Outdoor Lighting PGM3-180L5K-U-DB 72W Dark Bronze Finish Perimaliter LED Wallpack, Glass Refractor, 180 LEDs, 5000K, 80CRI, 700mA, 120V-277V
2
sold in last
8
hours
HUBBELL-PGM3-180L5K-U-DB
$510.00
customers are viewing this product
PRODUCT DESCRIPTION
Perimeter lighting for safety, security and identity Applications include office buildings, shopping centers, restaurants, schools, warehouses, parking garages and other commercial areas
SPECIFICATIONS :
Operating Temperature:
-40˚C to 40˚C ambient environments
Construction:
The die-cast aluminum housing provides firm mounting over recessed junction boxes
3 x 1/2" threaded conduit holes (top and sides) for surface conduit wiring or PC for dusk-to dawn control
Two door options available:
Cast aluminum frame with prismatic borosilicate glass (PGM3)
One piece, prismatic, vandal resistant polycarbonate cover (PVL3)
Standard finish is dark bronze textured powder paint. The PGM3 version is available in alternate finishes of black, white, gray, platinum silver and custom colors
LED/Optical:
180 high powered LEDs in 2 parallel series, produce up to 8064 lumens (112 LPW) in PGM3 and 6778 lumens (94 LPW) in PVL3
CCT -- 3000K, 4000K, 5000K (80 CRI)
Wide type IV uniform distribution for PGM3
Wide type III uniform distribution for PVL3
Electrical
120-277V universal voltage 50/60Hz, 0-10V dimmable
Driver RoHS and IP66
32w (1 driver, 350mA, 55mA delivered)
72w (2 drivers, 700mA, 116mA delivered)
Drivers have greater than .90 power factor and less than 20% Total Harmonic Distortion
10kA surge protection (parallel); Automatically takes fixture off-line when device is consumed
Controls
Photocell and occupancy sensor options available for complete on/off or programmable dimming control
Egress Version
Minimum of 1fc at 12' mounting height covering 10'x10' square in battery mode, exceeds Life Safety Code requirements of 1 fc average. See options below for more information.
Listings:
Listed to UL 1598 for use in wet locations
Some LED models meet DesignLights Consortium (DLC) qualifications
Warranty:
Five year limited warranty
SPECIFICATIONS :
Operating Temperature:
-40˚C to 40˚C ambient environments
Construction:
The die-cast aluminum housing provides firm mounting over recessed junction boxes
3 x 1/2" threaded conduit holes (top and sides) for surface conduit wiring or PC for dusk-to dawn control
Two door options available:
Cast aluminum frame with prismatic borosilicate glass (PGM3)
One piece, prismatic, vandal resistant polycarbonate cover (PVL3)
Standard finish is dark bronze textured powder paint. The PGM3 version is available in alternate finishes of black, white, gray, platinum silver and custom colors
LED/Optical:
180 high powered LEDs in 2 parallel series, produce up to 8064 lumens (112 LPW) in PGM3 and 6778 lumens (94 LPW) in PVL3
CCT -- 3000K, 4000K, 5000K (80 CRI)
Wide type IV uniform distribution for PGM3
Wide type III uniform distribution for PVL3
Electrical
120-277V universal voltage 50/60Hz, 0-10V dimmable
Driver RoHS and IP66
32w (1 driver, 350mA, 55mA delivered)
72w (2 drivers, 700mA, 116mA delivered)
Drivers have greater than .90 power factor and less than 20% Total Harmonic Distortion
10kA surge protection (parallel); Automatically takes fixture off-line when device is consumed
Controls
Photocell and occupancy sensor options available for complete on/off or programmable dimming control
Egress Version
Minimum of 1fc at 12' mounting height covering 10'x10' square in battery mode, exceeds Life Safety Code requirements of 1 fc average. See options below for more information.
Listings:
Listed to UL 1598 for use in wet locations
Some LED models meet DesignLights Consortium (DLC) qualifications
Warranty:
Five year limited warranty
