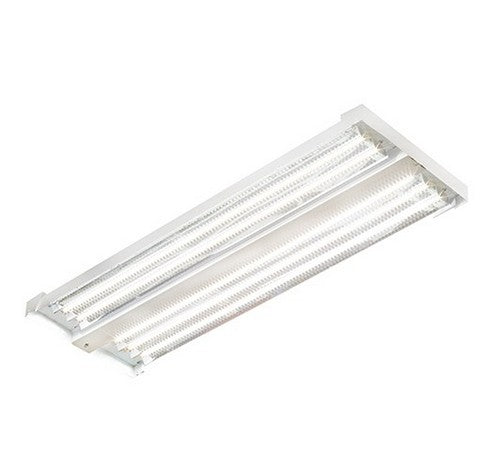

Hubbell Lighting Columbia Lighting LLHV4-40 Medium Watt Lumen 4' Versabay LED High Bay - Narrow Distribution 120V-277V

VersaBay® LED combines powerful, high light output LED technology with remarkable energy savings for a quick return on investment.LLHV lumen packages suitable for replacement of 150W to 1,000W HID. With 60,000 hour L80 life (projected over 100,000 hours), LLHV is the smart choice for warehouses, manufacturing, gymnasiums, convention centers and other large, open commercial spaces.

SPECIFICATIONS :

PHOTOMETRIC CHARACTERISTICS

Color Rendering Index (CRI) 84
Color Temperature 4000K
Lumens per Watt (Efficacy) 114
Bi-Level No Bi-Level
Sensor None
Dimming 0-10V
Color Temperature 4000K
Options None

DIMENSIONS

Length 16.19 in
Width 16
Height 2.00 in

GENERAL CHARACTERISTICS

Color White
Dimming Capability 0-10V Dimming
Finish All metal parts processed with a phosphate bonding treatment. Pre-painted with high gloss baked white enamel, 86% reflective. Polyester powder coat paint after fabrication (PAF) option available for product housing and ends, reflectance 90%.
Lamp Type LED
mounting Fixture to be suspended a minimum of 28" from solid surface. Mounting options include aircraft cable, tong hanger, pipe hanger, or chain.
LED lifetime (L70) 60,000 hours

ELECTRICAL CHARACTERISTICS

Voltage 120V-277V
Wattage 144W

PRODUCT INFORMATION

Brand Name Hubbell Lighting
Standard Solid Top (no uplight), Meduim Watt LUMEN OUTPUT, Narrow Distribution
