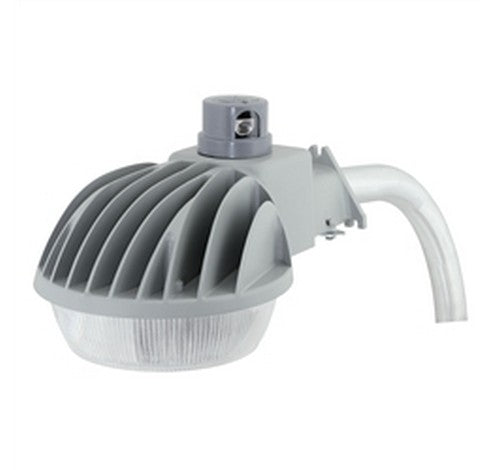

Hubbell DDL-9L1-LR-NA-NPC-TB Multi-purpose Dusk-to-Dawn LED Luminaire
HUBBELL-DDL-9L1-LR-NA-NPC-TB
Multi-purpose dusk-to-dawn LED lumianire provides general purpose area/security, roadway and landscape lighting.
SPECIFICATIONS :
Low EPA modern styling
Zero uplight design for environmentally friendly installations
Up to 5279 lumens with up to industry-leading 121 lumens per watt efficacy
DLC Qualified - All models
Symmetric LED lens installed standard; Field rotatable asymmetric LED lens included in 9 LED model
Refractor provides enhanced security lighting and glare control
Rugged die-cast aluminum housing with textured gray powder paint provides corrosion resistance and clean finish
Versatile mounting options include: integral bracket that adjusts to fit both 2-3/8" & 1-5/8" OD mast arms, direct wall/surface mounting
24" (18" projection) arm included in 9 LED and 140 LED models
120V operation
120V twist-lock style photocontrol included
Certifications
ANSI 3G vibration rated
DesignLights Consortium (DLC) qualified
CSA
Wet listed
