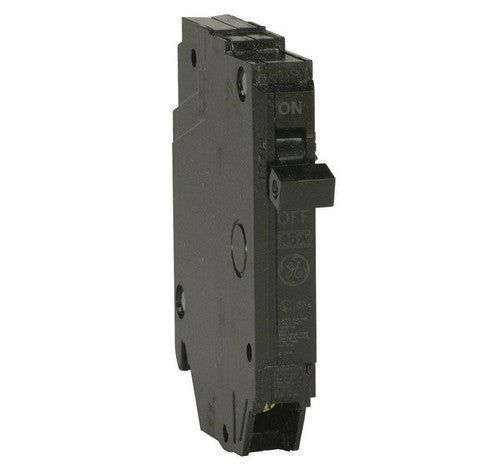

GE THQP145 45 Amp One-pole Feeder Plug-in Circuit Breakers 10K IC 120/240VAC

THQP breakers are a smaller, smarter solution for today's cost- and quality-conscious contractors and homeowners. Half the width of standard breakers, they allow use of smaller load centers and for maximum savings of space and money. GE is the only manufacturer that gives you this cost advantage without sacrificing flexibility. THQP breakers are one-half the width of standard GE breakers but identical in design. They are available from 15 to 50 amps and in single and two pole construction. P145 Amps 45 A.

FEATURE :

Category: Feeder Plug-in Circuit Breakers
Product Line: Q-Line (Plug-In)
GO Schedule: R5

SPECIFICATIONS :

Trip Style: Non-Interchangeable
Frame Type: Q-Line
Amperage: 45 A
System Voltage: 120 VAC, 120/240 VAC
Poles: 1
Trip Function: LI
Continuous Current Rated: Standard
120 Vac Interrupting Rating: 10 KAIC
120/240 Vac Interrupting Rating: 10 KAIC
Suitable for Reverse Feed: Yes
Wire Range (Cu/Al): 8-4 kcmil / 8-4 kcmil
Long Time: Fixed
Instantaneous: Fixed
Protective Relays: No
Current Metering: No
Special Markings: HACR
GSA Compliance: Yes
Classifications:
UL File # E11592
UPC: 783164134469
