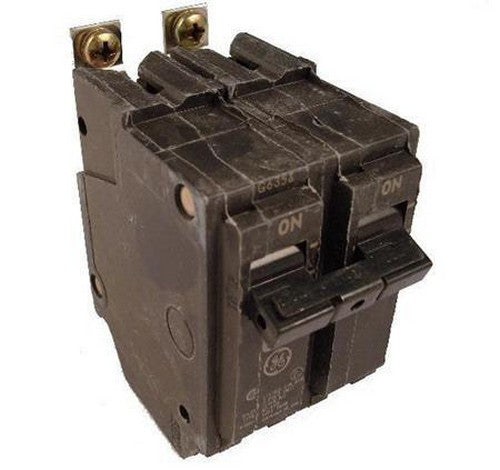

GE THQB21100 100 Amp Two-pole Q-Line Miniature Circuit Breakers 10KAIC Standard 120 ~ 240 VAC

Q line circuit breakers are one-inch wide per pole, compact, thermal-magnetic devices designed for residential and commercial applications. The QB breakers are bolt-on versions of the Q Line used for bolting to the bus connections of load centers and lighting panels. All Q Line circuit breakers feature Quick-make / Quick-break mechanisms, common trip bars, and easy to spot trip indication to ensure safety and reliability. Q Line breakers are available in 1, 2, and 3 pole versions, can be ordered with auxiliary contact and shunt trip accessories, and can be ordered for use in HID applications. 1100 Amps 100 A 11005749

FEATURE :

Category: Q-Line Miniature Circuit Breakers
Product Line: TEY / Q-Line (Bolt-On)
GO Schedule: EB

SPECIFICATIONS :

Trip Style: Non-Interchangeable
Frame Type: Q-Line
Amperage: 100 A
System Voltage: 120 Vac, 120/240 Vac
Poles: 2
Trip Function: LI
Continuous Current Rated: Standard
120 Vac Interrupting Rating: 10 KAIC
120/240 Vac Interrupting Rating: 10 KAIC
Suitable for Reverse Feed: Yes
Long Time: Fixed
Instantaneous: Fixed
Protective Relays: No
Current Metering: No
Special Markings: HACR
GSA Compliance: No
Classifications:
UL File # E11592
UPC: 783164135749
