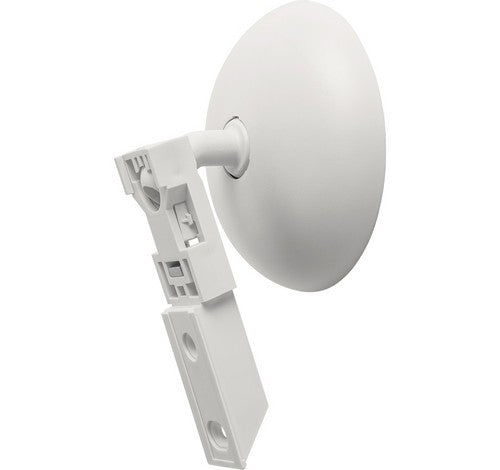

Flexible Armature Mounting-kit For Radio Powr Savr Corner Sensors

2 sold in last 8 hours
Lutron

LRF-ARM-WH

$49.00
$49.00
customers are viewing this product

Lutron® wall-mounted occupancy and vacancy sensors are wireless, battery-powered, passive infrared (PIR) sensors that automatically control lights via RF communication to compatible dimming or switching devices.
These sensors detect the heat from people moving within an area to determine when the space is occupied. The sensors then wirelessly transmit the appropriate commands to the associated dimming or switching devices to turn the lights on or off automatically. They combine both convenience and exceptional energy savings along with ease of installation.

FEATURES:

Wireless occupancy/vacancy sensor has 2 settings
available: Auto-On/Auto-Off, and Manual-On/Auto-Off
Vacancy model meets CA Title 24 requirements
Passive infrared motion detection with exclusive Lutron®
XCTTM Technology for fine motion detection
180° field of view model:
Minor motion = 1500 ft2 (139.4 m2)
Major motion = 3000 ft2 (278.7 m2)
90° field of view model:
Minor motion = 1225 ft2 (113.8 m2)
Major motion = 2500 ft2 (232.3 m2)
Hallway model with long, narrow field of view:
Major motion = coverage of up to 150 ft (45.7 m)
Simple and intuitive adjustments available for Timeout, Activity, and Auto-On settings
Accessible test buttons make setup easy
Lens illuminates during test mode to verify ideal locations
Multiple sensors can be added for extended coverage; refer to product specification submittal of receiving device to determine system limits
10-year battery life design
RoHS compliant

SPECIFICATIONS:

Operating voltage: 3 V-
Operating current: 14 μA nominal
Requires one CR 123 lithium battery
10-year battery-life design
Non-volatile memory (saved changes are stored during power loss)
Temperature: 32 °F to 104 °F (0 °C to 40 °C)
For indoor use only
Timeout Options
1 minute
5 minutes
15 minutes (default setting)
30 minutes
