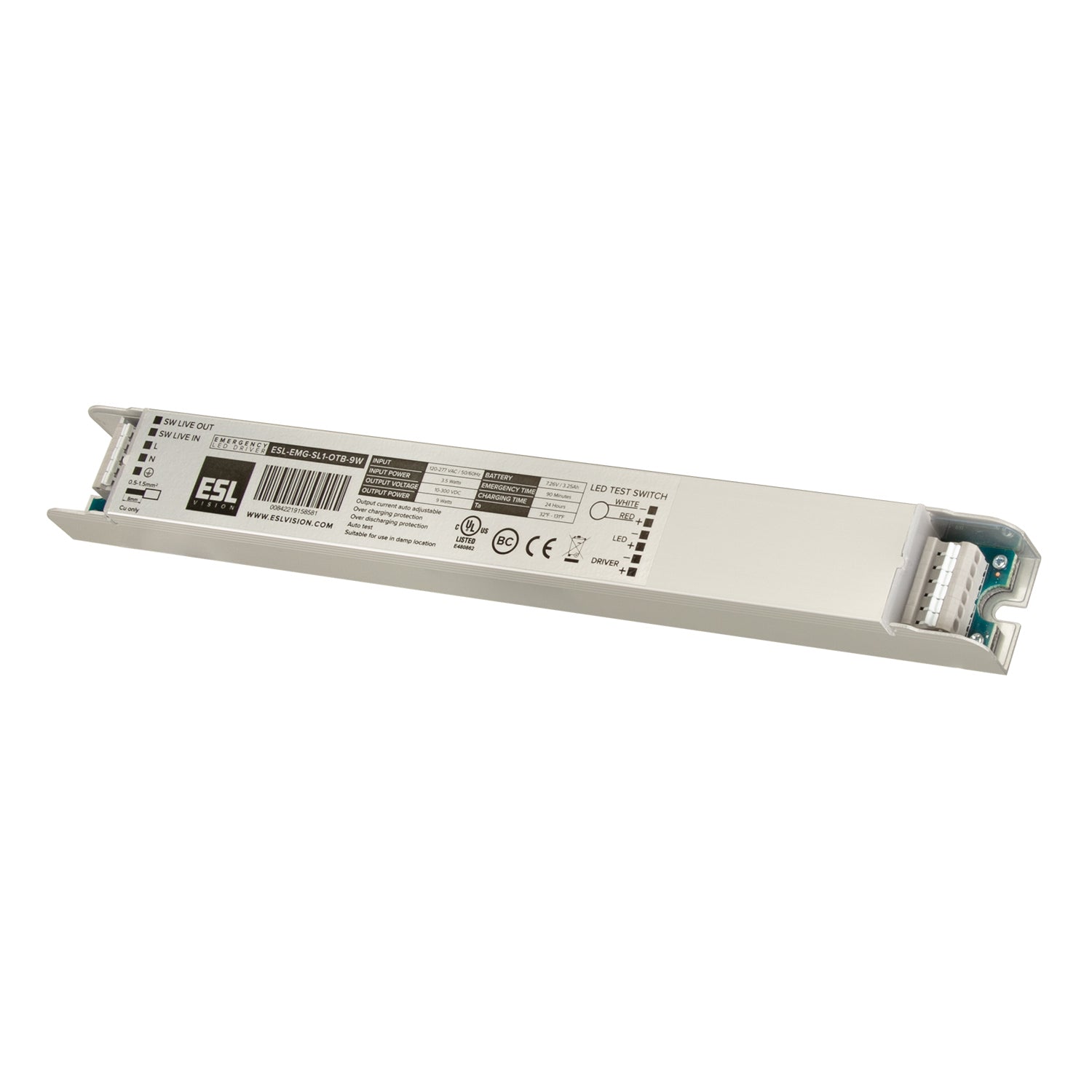

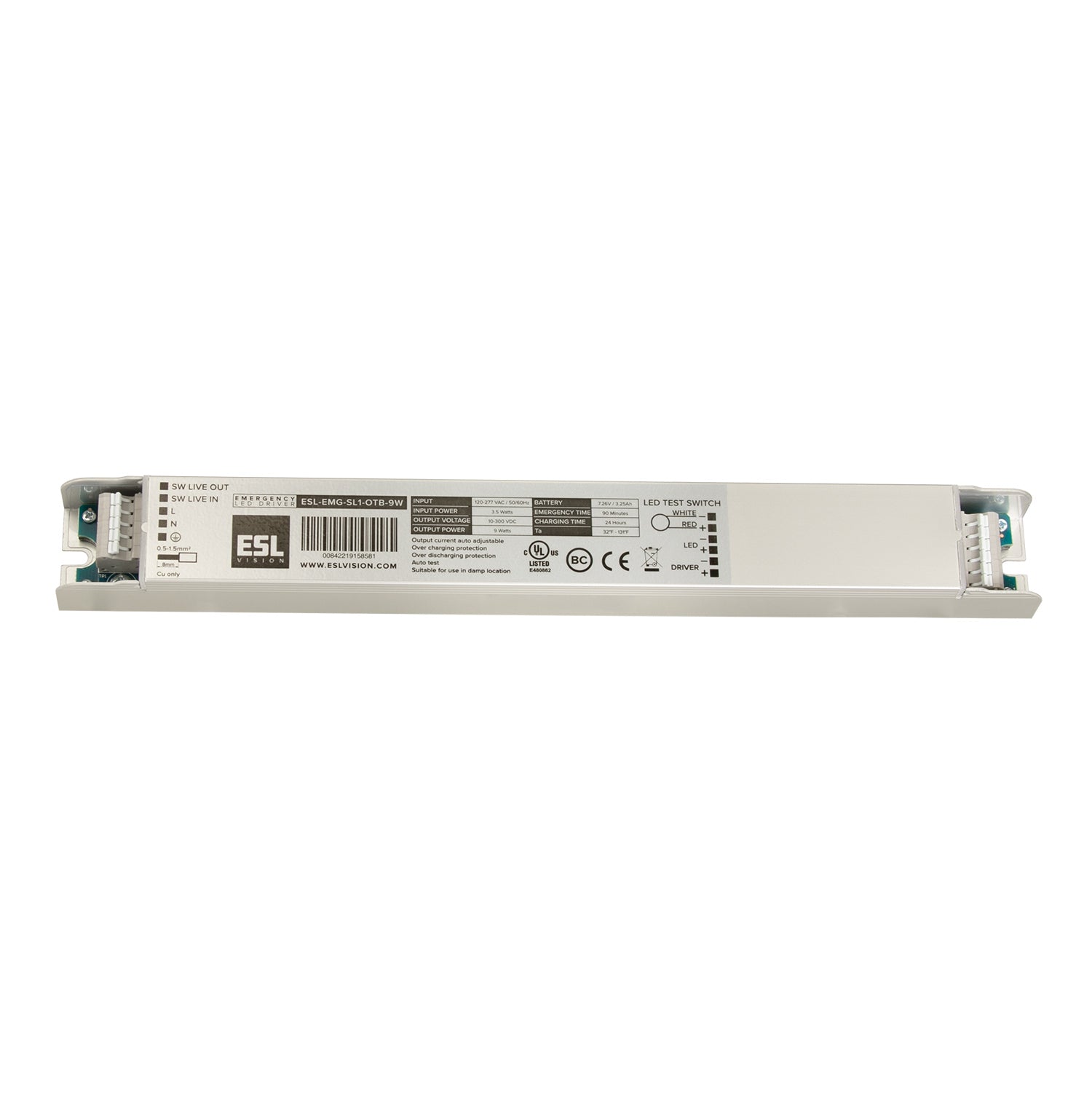

ESL Vision ESL-EMG-SL1-OTB-9W

ESL-EMG-SL1-OTB-9W Product Description

ESL Vision Emergency Backup Battery Unit, Auto Test Function, 9 Watts Ouput, 90 Minutes MIn, Voltage 120-277VAC Input, 10-300VDC Output, Open Terminal Block Wiring

Features:

Field or Factory Installation - UL 924 and CSA C22.2 No. 141 Emergency Lighting Compliant
Meets CEC Title 20 (California Energy Commission) Requirements
Monthly and Yearly Auto Test Function for Reduced Maintenance
Meets or Exceeds all NEC Emergency Lighting Standards
Slim Profile Design
Compatible with AC Input Lamps and DC Output Drivers (See wiring diagrams for more info)
Constant Power Output Provides 90 Minutes of Consistent Egress Lighting with no Degradation
Lithium-Ion Battery (7-10 Year Life Expectancy with >1000 Charging Cycles)
2-Wire Illuminated Test Switch

Specifications:

Manufacturer: ESL Vision
SKU: ESL-EMG-SL1-OTB-9W
UPC: 842219158581
INPUT
Rated Current: 0.04A
Rated Voltage: 100–277 VAC, 50–60Hz
Rated Power: 3 Watts
OUTPUT
Emergency Output Power: 9 Watts
Output Voltage: 10–300 VDC
Output Current: 1A (max)
Output Current of AC Driver: 3A (max)
Operation Frequency: 320kHz≥f≥50kHz
EMERGENCY
Emergency Operation:    ≥90 Minutes
Charging Time:    24 Hours
Charging Cycles: >1,000
ENVIRONMENT
Operating Temperature: 32°F–131°F (0°C–50°C)
Dimensions (LxWxH): 10.24" x 1.18" x 0.87"
Weight:    0.66 lbs
