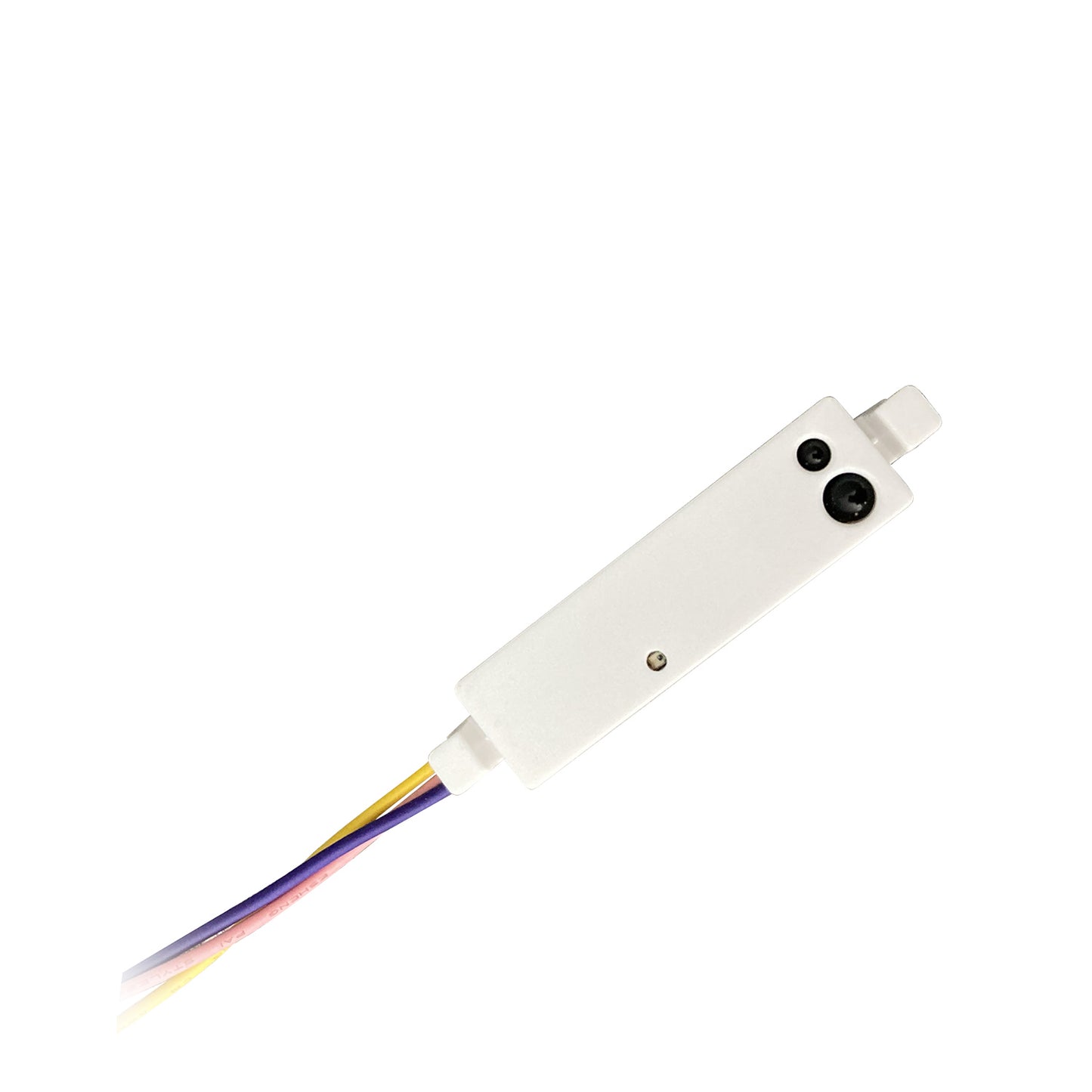

ESL Vision ESL-5DHOC-LV

ESL-5DHOC-LV Product Description

This versatile microwave sensor provides daylight harvesting and occupancy detection with 0–10V dimming control and on/off functionality. It features a 12ft detection radius, adjustable hold time (10 seconds to 60 minutes), and stand-by time. Programmable via remote control, it supports a 10V–14V DC power supply and operates in temperatures from -40°F to 158°F. Ideal for energy-efficient lighting solutions.

Specifications:

Manufacturer: ESL Vision
SKU: ESL-5DHOC-LV
UPC: 196065689233
Power Supply: 10V–14V DC >50 mA
Dimming Control Output: 0–10V Max, 25mA Sinking Current
Sensor Type: MICROWAVE
Detection Radius: 12ft/360°
Mounting Height: 12ft Max
Remote Range: up to 50ft, indoor, no backlight
Humidity: Max 95% RH
Operating Temperature:    -40°F to 158°F (-40°C to 70°C)
Provides On/Off Control
0–10V Dimming Control
Programmable via Remote Control
Adjustable Hold Time and Stand-by Time
Set Hold Time from 10 Seconds to 60 Minutes
