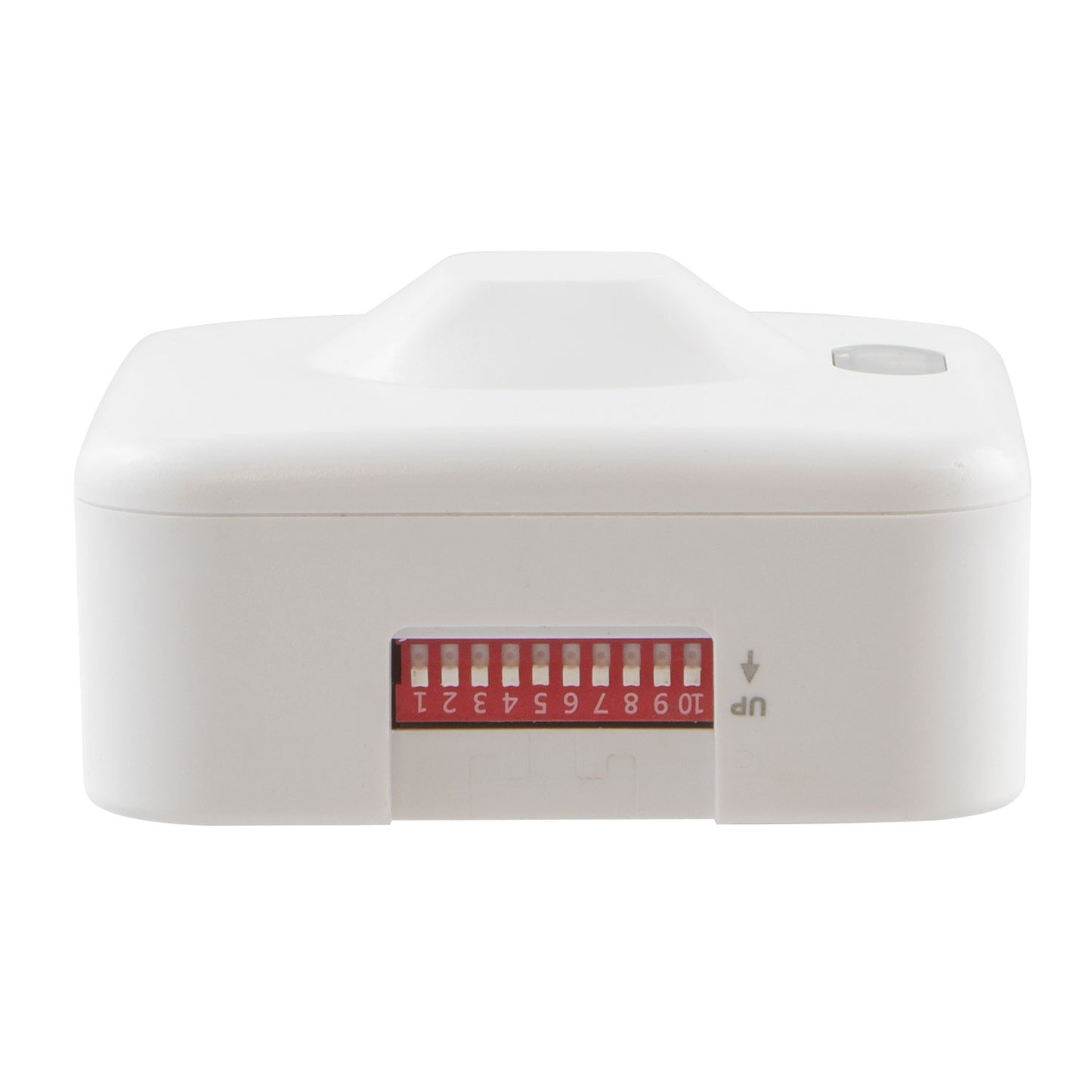

ESL Vision ESL-2OCC-HDO Microwave High Bay Sensor with Dip Switch, On/Off Control
ESL-2OCC-HDO
ESL Vision ESL-2OCC-HDO
ESL-2OCC-HDO Product Description
ESL Vision Microwave High Bay Sensor with Dip Switch, On/Off Control
Features:
0-10V Dimming Control
Works With Ballast or LED Drivers
Adjustable Via Built in Dip Switches or Remote Control
High and Low Modes - Fully Adjustable from 0 to 10V
Optional Cut O Delay
Time Delay From 10 Seconds to 60 Minutes
Adjustable Ramp Up and Fade Down Times
Durable and Reliable Operation:
- High Inrush Stability
- Zero Crossing Circuitry
Specifications:
Manufacturer: ESL Vision
SKU: ESL-2OCC-HDO
UPC: 842219138774
Power Supply: 120-277 VAC, 50/60Hz
Maximum Load @ -40°F ~ 158°F:
Incandescent/Halogen - 800W/1200W@ 120/277V
Fluorescent Ballast/CFL - 800W/1200W@ 120/277V
Ballast Electronic (LED) - 800/1200VA@ 120/277V
HF System: 5.8Ghz CW
Sensor Type: Microwave
Sensitivity Adjustment: 20% / 50% / 75% / 100%
Dimming Control Output: 0-10V Max. 25mA sinking current
Detection Radius/angle: 30ft@50ft Height/360°
Detection Area (square footage): 2826ft²@50ft Height/360°
Mounting Height: 50ft Max
Remote Range: 50ft
Humidity: Max 95% RH
Temperature: -40°F ~ 158°F (-40°C ~ 70°C)
