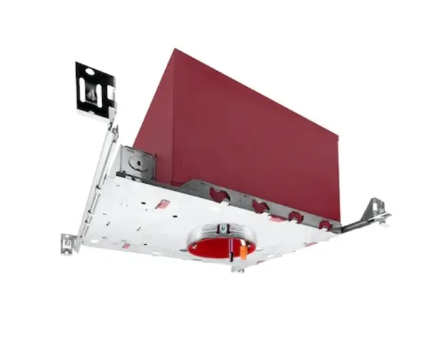

EnvisionLED C4-NC-ICAT-LED-FR-0/10V

C4-NC-ICAT-LED-FR-0/10V Product Description

EnVision's 6-in Fire Rated New Construction Can is a perfect fit for remodel while using any of EnVision 4-in LED's downlights.

Specifications:

Size: 4-in.
New Construction Housing.
Fire Rated.
Title 24 Orange Quick Connect Socket.
Airtight.
IC Rated.
120-277V.
0-10V Dimming wires are purple and gray.
Applications: General Recessed Lighting, Residential and Multi-family, Office and Meeting Rooms, Education, Healthcare, Retail, and Hospitality.
IC airtight for direct contact with insulation.
2-hour fire resistance to meet and exceed strict fire safety codes.
Integrated non-combustible insulation acts as sound barrier minimizing sound transfer between floors.
Non-Dimmable.
High strength hanger bars can easily be nailed to joist.
Suitable for t-grid and drop ceiling applications.
Positioned to accommodate straight conduct runs.
Four pry-out knockout slots for easy romex installation.
Pre-installed hangar bars with true nail easy installation in regular lumber, engineered lumber, and laminated beams.
Integral t-bar slots for easy installation in t-bats. Spans up to 24-in and can be repositioned to 90 degrees.
Score lines allow for tool-free installation while easily aligning the housing with the joists.
cETLus Listed, Title 24, FCC.
Warranty.
