Enerlites MDW-V-W

MDW-V-W Product Description

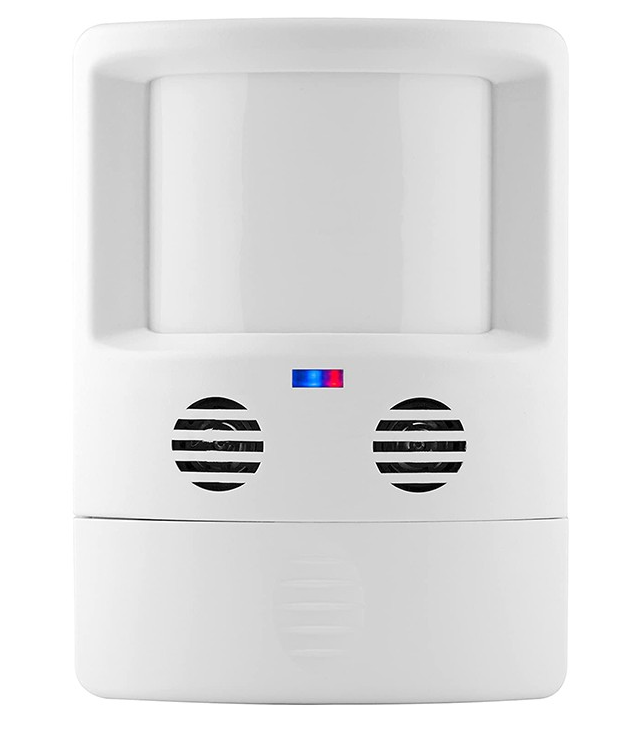

Enerlites Wall-mounted dual technology occupancy sensor detects a 150-degree field of view. Advanced ultrasonic & passive infrared technology provides the most accurate detection possible. Can even detect fine movements such as typing, or flipping pages of a book.

Specifications:

Brand: Enerlites
Part Number: MDW-V-W
Color: White
Voltage: 120-277VAC
Motor: 1/4 HP - 120VAC, 50/60HZ
Operating Temperature: 32°to 131°F (0°to 55°C)
Adjustment Time Delay: 5 Sec. to 30 Min.
Test Mode: Delay time is 5 sec. lasts 30 Min. at each time by setting
PIR Adjustment: 50% or 100% (DIP switch 1)
Ultrasonic Adjustment； Minimum to Maximum (trim pot 1)
Light Level Adjustment: 100 Lux --daylight (trim pot 2)
PIR Coverage: 1600 sq. ft.
Ultrasonic Coverage: 1000 sq. ft.
Multi-technology PIR and Ultrasonic
Multi-level, 360° Fresnel lens for superior occupancy detection
Controls incandescent, CFL, and LED lighting
Product Warranty: 2 Years
