Enerlites 62580-TR-LA

62580-TR-LA Product Description

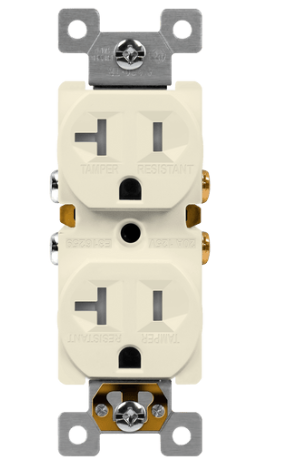

20 Amp, 125V AC duplex receptacle with thermoplastic construction, featuring a shallow build for maximum wiring room, break-off tabs for 2-circuit conversion, and optional grounding with self-grounding clip.

Specifications:

Brand Enerlites
Amperage: 20 Amp
Voltage: 125V AC
NEMA: 5-20R
Termination: Rear Push-In and Side
Material: Thermoplastic
Operating Temperature: -104°F to 167°F

Features:

Optional grounding with self-grounding clip or green terminal screw
Automatically ground to the metal outlet box
Break-off tabs for easy two-circuit conversion
Push-in #14 AWG Cu solid wire for 15A branch circuit only
Shallow design for maximum wiring room
Easy-access green hex head grounding screw
Captive mounting screws
Removable yoke tabs for ideal alignment
Large head combination screws for fast wiring
Terminal screws backed out ready for wiring
Combination Slot/Phillips head mounting and terminal screws ease installation

About Enerlites:

Enerlites is the leading national supplier of lighting controls and wiring devices. Their catalog includes patented products that concentrate on energy efficiency, high quality, and the application of cutting-edge technology.
