EMCOD MLE200-24DC 200W

MLE200-24DC 200W Product Description

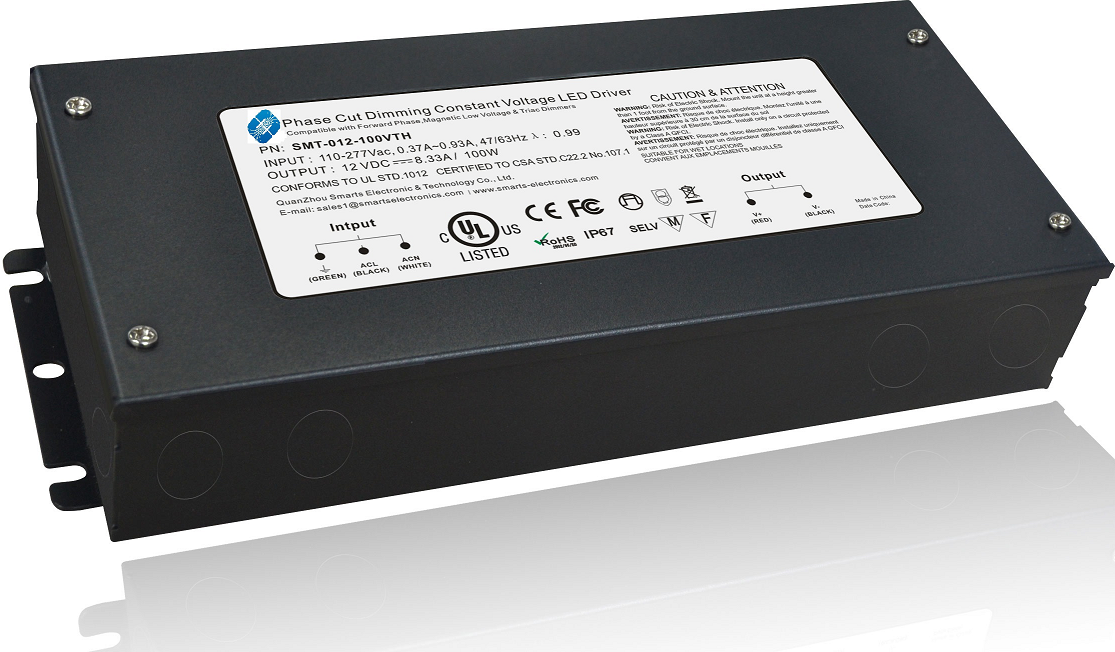

EMCOD LED Driver Electronic Constant Voltage 110-277V/12VDC, Black Powder Coated Steel Enclosure

Specifications:

Transformer
PWM output. Dimmable with any ELV, MLV, CL, forward or reverse phase.
Input leads are 18AWG 600V
Output leads are 16AWG 300V
Leads max. operational temperature is 105°C

Housing
The actual transformer 200W is encapsulated in the enclosure
The enclosure is Black Powder Coated Steel, with built-in class 2 wiring
compartment, dry and damp location rated
Wiring compartment has 6 knockouts sizes for 3/8 inch screw cable
connectors
Enclosure Temperature does not exceed 70°C at 45°C ambient and fully
loaded
Dimensions (inch): H = 10.3, W = 4.06, D = 1.77
Weight (LBs): 4

About EMCOD:

EMCOD is a world-class developer and manufacturer of LED drivers, Lighting and custom made general-purpose transformers for electronic and electrical equipment. Emcod Lighting group’s advanced LED drivers and transformers bring innovation to commercial and residential lighting.

Please email us with the products you need and the details of your job at buyriteelectric@gmail.com
