EMCOD MLE100-12DC

MLE100-12DC Product Description

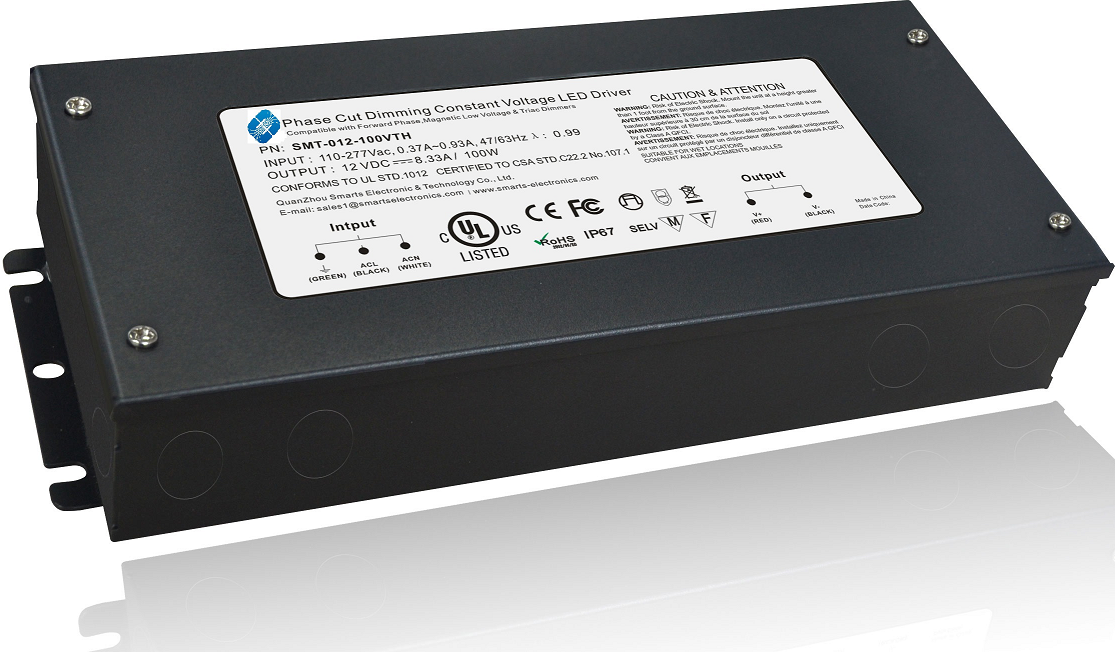

EMCOD100W LED Driver Electronic Constant Voltage 110-277V/12VDC, Black Powder Coated Steel Enclosure

Specifications:

Transformer
PWM output. Dimmable with any ELV, MLV, CL, forward or reverse phase.
Input leads are 18AWG 600V
Output leads are 16AWG 300V
Leads max. operational temperature is 105°C

Housing
The actual transformer 100W is encapsulated in the enclosure
The enclosure is Black Powder Coated Steel, with built-in class 2 wiring
compartment, dry and damp location rated
Wiring compartment has 6 knockouts sizes for 3/8 inch screw cable
connectors
Enclosure Temperature does not exceed 70°C at 45°C ambient and fully
loaded
Dimensions (inch): H = 7.8, W = 3.66, D = 1.61
Weight (LBs): 3
