EMCOD ML60S12AC

ML60S12AC Product Description

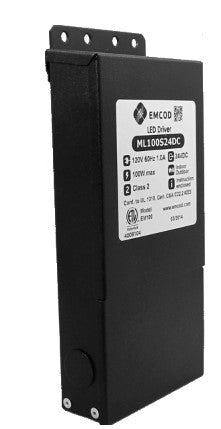

EMCOD Class 2 Magnetic LED AC Driver Outdoor Phase cut Dimmable Black Powder Coated Steel Enclosure

Specifications:

Transformer:
Dimmable with compatible MLV, ELV, CL dimmers, please refer to list on
emcod.com
Temperature class B(130°C)
Input leads are 18AWG 600V
Output leads are 18AWG 300V
Leads max. operational temperature is 105°C
Thermal self reset primary breaker 1A
Thermal self reset secondary breaker 5A

Housing:
The actual transformer 60W is encapsulated in the enclosure
The enclosure is Black Powder Coated Steel, NEMA 3R rated
Wiring compartment has 3 knockouts sizes for 3/8 inch screw cable
connectors
Enclosure Temperature does not exceed 75°C at 45°C ambient and fully
loaded
Dimensions (inch): H = 8.13, W = 9.93, D = 1.59
Weight (LBs): 3.85
