EMCOD ML40S24DC

ML40S24DC Product Description

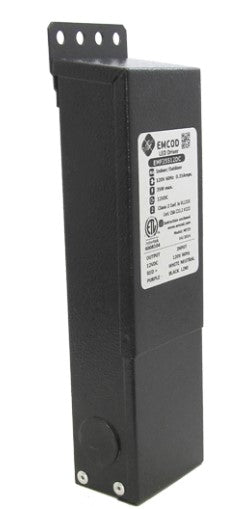

EMCOD Class 2 Magnetic LED Driver Phase Cut Dimmable 120V/24VDC, Wattage 40W, Black Powder Coated Steel Enclosure

Specifications:

Transformer:
Dimmable with compatible MLV, ELV, CL dimmers, please refer to list on
emcod.com
Temperature class B(130°C)
Input leads are 18AWG 600V
Output leads are 18AWG 300V
Leads max. operational temperature is 105°C
Thermal self reset primary breaker 1.25A
Thermal self reset secondary breaker 3A

Housing:
The actual transformer 40W is encapsulated in the enclosure
The enclosure is Black Powder Coated Steel, NEMA 3R rated
Wiring compartment has 2 knockouts sizes for 3/8 inch screw cable
connectors
Enclosure Temperature does not exceed 75°C at 45°C ambient and fully
loaded
Dimensions (inch): H = 7.38, W = 2.11, D = 1.6
Weight (LBs): 2.1

About EMCOD:

EMCOD is a world-class developer and manufacturer of LED drivers, Lighting and custom made general-purpose transformers for electronic and electrical equipment. Emcod Lighting group’s advanced LED drivers and transformers bring innovation to commercial and residential lighting.

Please email us with the products you need and the details of your job at buyriteelectric@gmail.com
