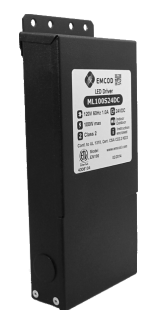

EMCOD ML100S24DC 100W LED Magnetic Driver Phase Dimmable 120V/12VDC, Black Powder Coated Steel Enclosure
ML100S24DC
EMCOD ML100S24DC
ML100S24DC Product Description
EMCOD 100W LED Magnetic Driver Phase Dimmable 120V/12VDC, Black Powder Coated Steel EnclosureSpecifications:
Transformer
Dimmable with any LV magnetic dimmer as long as you cover dimmer’s
min load.
Temperature class B(130°C)
Input leads are 18AWG 600V
Output leads are 18AWG 300V
Leads max. operational temperature is 105°C
Thermal manually reset primary breaker 2A
Thermal manually reset secondary breaker 4A
Housing
The actual transformer 96W is encapsulated in the enclosure
The enclosure is Black Powder Coated Steel, NEMA 3R rated
Wiring compartment has 6 knockouts sizes for 3/8 inch screw cable
connectors
Enclosure Temperature does not exceed 75°C at 45°C ambient and fully
loaded
Dimensions (inch): H = 8.13, W = 3.93, D = 1.59
Weight (LBs): 4.3
