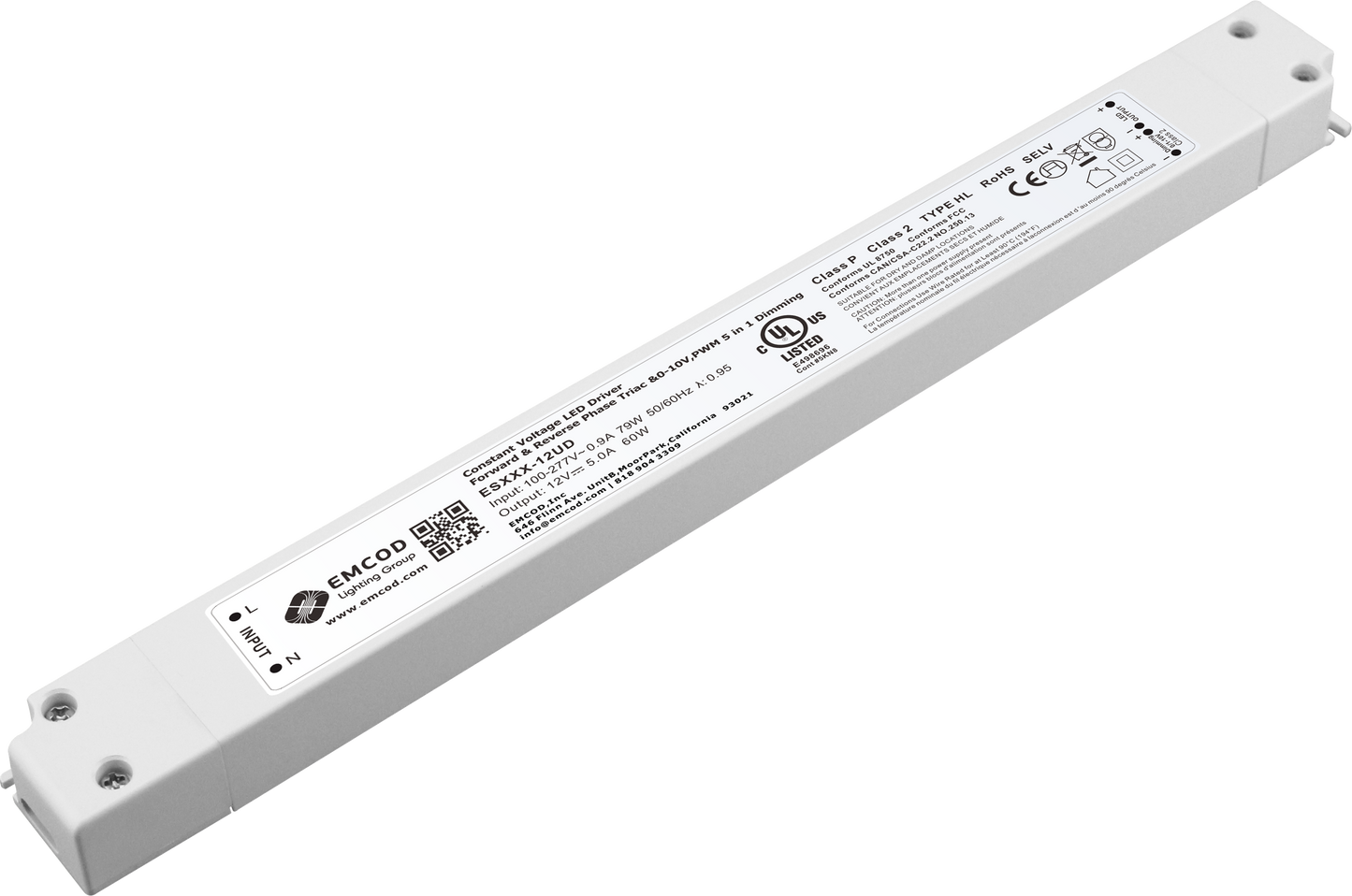

EMCOD ES60-12UD

ES60-12UD Product Description

EMCOD 60W Class 2 Electronic Universal 5 in 1 dimming, Suitable For Dry And Damp Location Enclosure

Specifications:

Transformer
Dimmable with triac forward and reverse phase, 0/1-10V , resistor, PWM
Input leads: Terminal Block
Output leads: Terminal Block

Housing
The actual transformer 60W is encapsulated in the enclosure
The enclosure is Plastic suitable for dry and damp location, with wire
compartment, IP 20 rated
Enclosure Temperature does not exceed 65°C at 45°C ambient and fully
loaded
Dimensions (inch): H = 11.5, W = 1.18, D = 0.73
Weight (LBs): 0.53

About EMCOD:

EMCOD is a world-class developer and manufacturer of LED drivers, Lighting and custom made general-purpose transformers for electronic and electrical equipment. Emcod Lighting group’s advanced LED drivers and transformers bring innovation to commercial and residential lighting.
