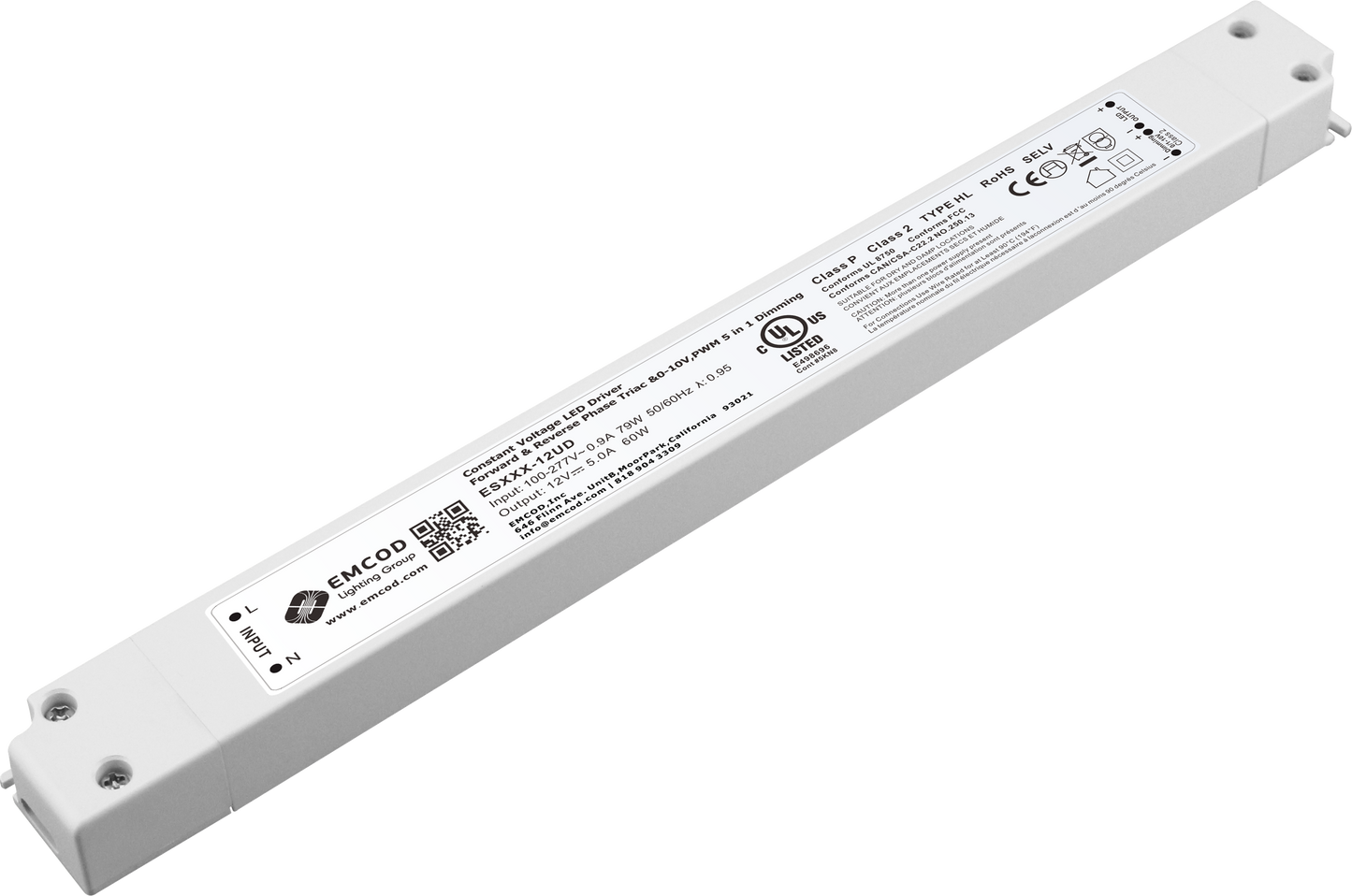

EMCOD ES100-12UD
ES100-12UD Product Description
EMCOD 100W Electronic Universal 5 in 1 dimming, Plastic Suitable For Dry And Damp Location EnclosureSpecifications:
TransformerDimmable with triac forward and reverse phase, 0/1-10V , resistor, PWM
Input leads: Terminal Block
Output leads: Terminal Block
Housing
The actual transformer 100W is encapsulated in the enclosure
The enclosure is Plastic suitable for dry and damp location, with wire
compartment, IP 20 rated
Enclosure Temperature does not exceed 65°C at 45°C ambient and fully
loaded
Dimensions (inch): H = 12.7, W = 1.18, D = 0.85
Weight (LBs): 0.73
