EMCOD EM3-300S24DC

EM3-300S24DC Product Description

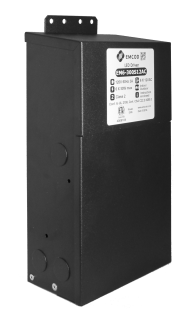

EMCOD 300W LED Magnetic Driver Phase Dimmable 120V/12VDC, Black Powder Coated Steel Enclosure

Specifications:

Transformer
Temperature class B(130°C)
Two section bobbin completely separated primary and secondary
windings
Input leads are 18AWG 600V
Output leads: Terminal Block
Leads max. operational temperature is 105°C
Thermal manually reset primary breaker 5A
Thermal manually reset secondary breaker 4A per circuit

Housing
The actual transformer 288W is encapsulated in the enclosure
The enclosure is Black Powder Coated Steel, NEMA 3R rated
Wiring compartment has 13 knockouts sizes for 3/8 inch screw cable
connectors
Enclosure Temperature does not exceed 75°C at 45°C ambient and fully
loaded
Dimensions (inch): H = 10.29, W = 5.69, D = 3.43
Weight (LBs): 1

About EMCOD:

EMCOD is a world-class developer and manufacturer of LED drivers, Lighting and custom made general-purpose transformers for electronic and electrical equipment. Emcod Lighting group’s advanced LED drivers and transformers bring innovation to commercial and residential lighting.

Please email us with the products you need and the details of your job at buyriteelectric@gmail.com
