EMCOD EM3-150S12DC

EM3-150S12DC Product Description

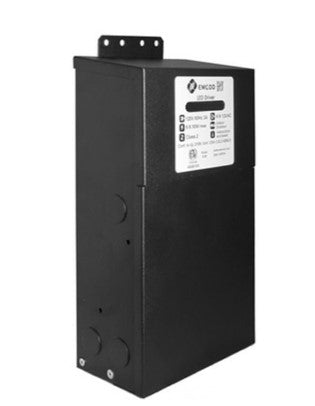

EMCOD Class 2 LED Magnetic Outdoor Driver Phase Cut Dimmable 120V/12VDC, Wattage 150W, Black Powder Coated Steel Enclosure

Specifications:

Transformer:
Temperature class B(130°C)
Two section bobbin completely separated primary and secondary
windings
Input leads are 18AWG 600V
Output leads: Terminal Block
Leads max. operational temperature is 105°C
Thermal manually reset primary breaker 2A
Thermal manually reset secondary breaker 4A per circuit

Housing:
The actual transformer 150W is encapsulated in the enclosure
The enclosure is Black Powder Coated Steel, NEMA 3R rated
Wiring compartment has 13 knockouts sizes for 3/8 inch screw cable
connectors
Enclosure Temperature does not exceed 75°C at 45°C ambient and fully
loaded
Dimensions (inch): H = 10.29, W = 5.69, D = 3.43
Weight (LBs): 0.85

About EMCOD:

EMCOD is a world-class developer and manufacturer of LED drivers, Lighting and custom made general-purpose transformers for electronic and electrical equipment. Emcod Lighting group’s advanced LED drivers and transformers bring innovation to commercial and residential lighting.
