EMCOD EM200S12DC

EM200S12DC Product Description

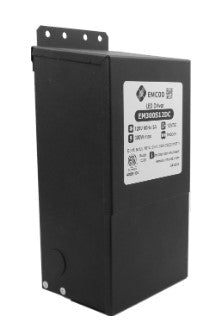

EMCOD LED Magnetic Driver Phase Cut Dimmable 120V/12VDC, Wattage 200W, Black Powder Coated Steel Enclosure

Specifications:

Transformer:
Dimmable with compatible MLV, ELV, CL dimmers, please refer to list on
emcod.com
Temperature class B(130°C)
Two section bobbin completely separated primary and secondary windings
Input leads are 18AWG 600V
Output leads are 12AWG 300V
Leads max. operational temperature is 105°C
Thermal manually reset primary breaker 3A
Magnetic manually reset secondary breaker 25A

Housing:
The actual transformer 200W is encapsulated in the enclosure
The enclosure is Black Powder Coated Steel, NEMA 3R rated
Wiring compartment has 6 knockouts sizes for 3/8 inch screw cable
connectors
Enclosure Temperature does not exceed 75°C at 45°C ambient and fully
loaded
Dimensions (inch): H = 8, W = 4.15, D = 3.41
Weight (LBs): 0.83

About EMCOD:

EMCOD is a world-class developer and manufacturer of LED drivers, Lighting and custom made general-purpose transformers for electronic and electrical equipment. Emcod Lighting group’s advanced LED drivers and transformers bring innovation to commercial and residential lighting.

Please email us with the products you need and the details of your job at buyriteelectric@gmail.com
