ELCO Lighting ET75830DB

ET75830DB Product Description

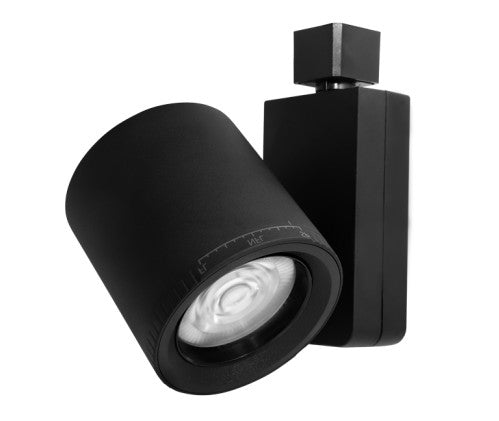

LED Bachman Track Fixture

FEATURES :

Diecast adjustable beam track fixture
Solid diecast aluminum fixture
Integrated driver
90º tilt, 358º rotation
50,000 hours life-span

SPECIFICATIONS :

Wattage 20W - 28W
Lumens 1600 lm - 2240 lm
Voltage 120V
Color Temp. 3000K
Dimmable Triac/ELV
Lamp Type LED
Beam Angle 20º - 50º
CRI 90+

Construction:

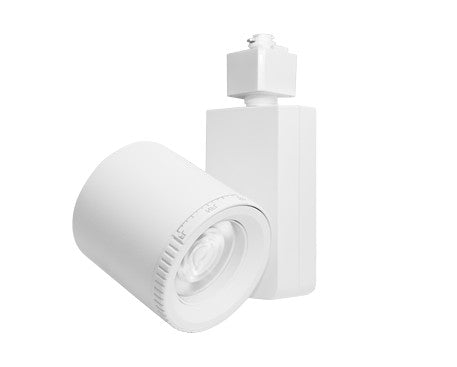

Full diecast construction for exceptional heat management and lasting quality. Powder coat
architectural white and architectural black matte finishes.

Adjustability:
Track head is adjustable 90° tilt with 358° rotation.
Optics: Lens provides smooth lumen output at standard 38°.

Installation: Effortlessly installed into H-Style track from ELCO or others. Compatible with Single and Double circuit track. Can be ordered as J-Style or L-Style.

LED Technology:
Extremely accurate Color Rendering Index of 90+ CRI
Efficacy of over 81 lumens per watt
Lumen Maintenance of 50,000 hours L70 Life based on LM80 standardized test results
Instant On to Full Brightness technology
Chip on Board LED design results in a smooth lumen output with no LED pixelation

Dimmability:
Triac and ELV dimmable down to 10%. Flicker-Free Dimming. For full list of dimmers refer to
the Dimmer Compatibility List

Electrical:
Driver is rated for 120V input. High Efficiency driver with a power factor > 0.9

Listings:
ETL Listed. RoHS Compliant

Warranty:
ELCO Products are built to last. 5-year Limited warranty.
