ELCO Lighting ET612-27DB

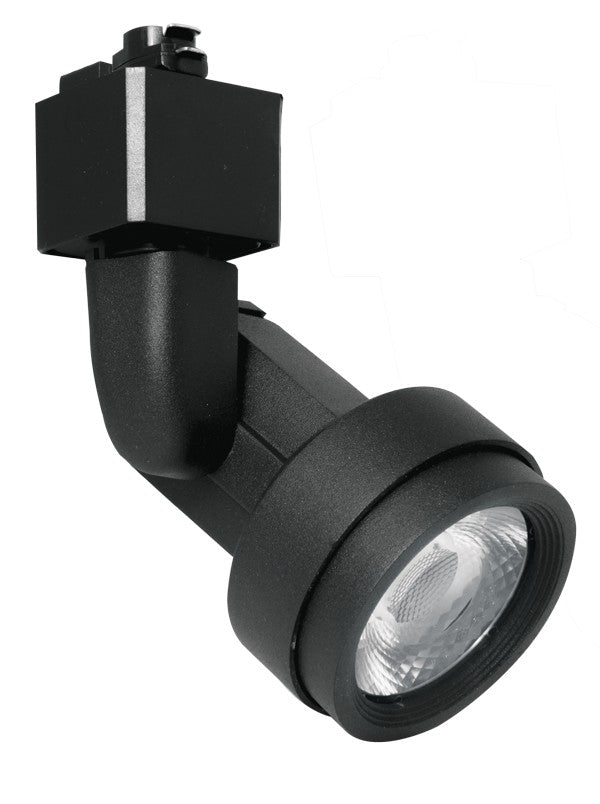

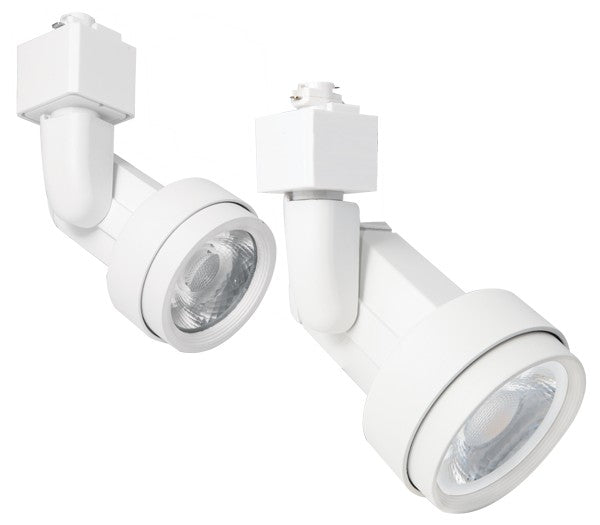

ET612-27DB Product Description

LED Transom Track Fixture

FEATURES :

Diecast adjustable track fixture
Integrated Driver
90° tilt, 358° rotation
38º Beam Angle Standard
Optional lenses for Transom™ (ET612D): EP719C (15°)
or EP720C (24°) available. Optional Lenses Transom™
(ET613D): EP722C (15°) or EP723C (24°) available.

SPECIFICATION :

Wattage 10W - 17W
Lumens 800 lm - 1500 lm
Voltage 120V
Color Temp. 2700K - 4000K
Beam Angle 38°
CRI 90+

Construction:
Full diecast construction for exceptional heat management and lasting quality. Powder coat
architectural white and architectural black matte finishes.

Adjustability:
Track head is adjustable 180° vertically with 358° rotation.

Optics: Lens provides smooth lumen output at standard 38°. Lens available as accessory for ET612D with 15° (EP719C) or 25° (EP720C). Lens available as accessory For ET613D with 15° (EP722C) or 24° (EP723C).

Installation:
Effortlessly installed into H-Style track from ELCO or others. Compatible with Single and Double circuit track. Can be ordered as J-Style or L-Style.

LED Technology:
Extremely accurate Color Rendering Index of 93+ CRI
Efficacy of over 88 lumens per watt
Lumen Maintaince of 50,000 hours L70 Life based on LM80 standardized test results
Instant On to Full Brightness technology
Chip on Board LED design results in a smooth lumen output with no LED pixelation

Dimmability:
Triac and ELV dimmable down to 10%
Flicker-Free Dimming
For full list of dimmers refer to the Dimmer Compatibility List

Electrical:
Driver is rated for 120V input
High Efficiency driver with a power factor > 0.9

Listings:
ETL Listed
RoHS Compliant

Warranty:
ELCO Products are built to last. 5-year Limited warranty.
