ELCO Lighting ERT41230W 12W 4" Ultra Slim LED High Lumen Round Panel Light 3000K, 750lm White
2 sold in last 8 hours
customers are viewing this product
ELCO Lighting ERT41230W
ERT41230W Product DescriptionThis 4" ultra slim panel light designed for quick and easy installation without a housing for both new construction and remodel applications. This IC-rated fixture can be installed indoor or outdoor and delivers a smooth light output of 700 lumens, in 3000K or 4000K.
FEATURES :IC Airtight for use with direct contact to insulation.
Designed to fit in plenums as shallow as 2".
Eliminates the need for housing.
New Construction application requires mounting plate or frame.
Remodel applications require no additional accessories.
Wet Location allows for use indoors or outdoors.
CA Title 24 and ENERGY STAR Compliant.
Includes driver and Jbox.
SPECIFICATIONS :Wattage : 12W
Lumens : 750 lm - 800 lm
Voltage : 120V
Color Temp. : 3000K - 4000K
Dimmable : Triac/ELV
Lamp Type : LED
CRI : 90+
Wet Location : Listed

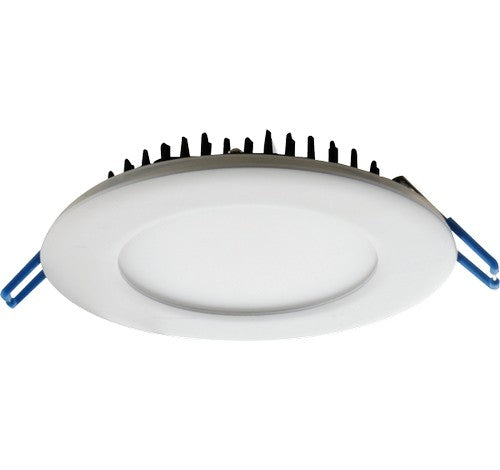

Optics: Polycarbonate lens diffuses light evenly throughout space with no LED pixelation.

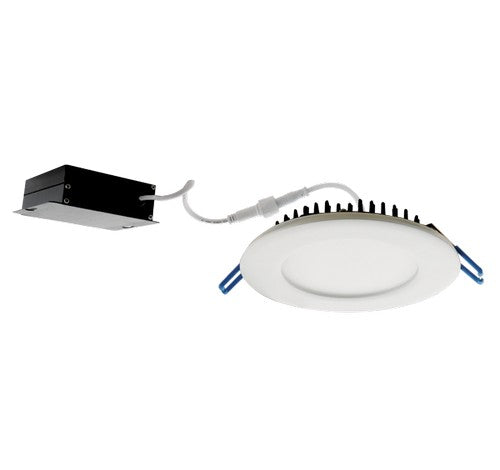

Construction: IC rated driver and fixture are tested and approved for direct contact with insulation. Aluminum die-cast trim ring with durable powdercoat finish preventing rust and paint cracking. Plenum rated cable connector to connect from module to remote driver box. Isolated driver integrated inside aluminum remote box with two 7/8" knockouts with slots for pryout.

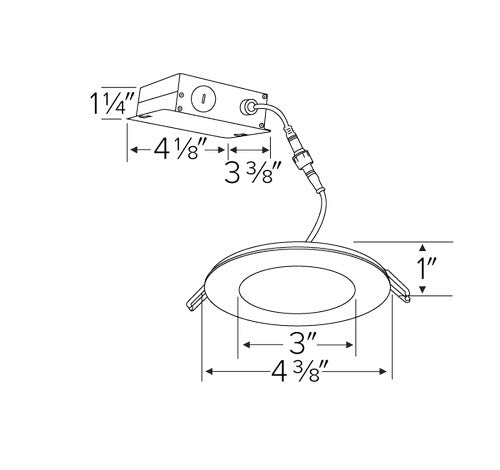

Installation: Designed for super shallow ceiling plenums without any housing. High strength steel spring clip for easy installation. Hole cut out template provided for accurate hole size for proper trim installation. Maximum hole size should not exceed 4 1/4" for this product. Suitable installation for t-grid and drop ceiling applications.
Electrical: Driver connects directly to 120V power supply. Standard input wattage is 12W, 58 lumens per watt. Replaces 70W incandescent.
Dimmability: Works with 120V Triac and ELV type dimmers. Dims down to 10%. For full list of dimmers, refer to the ELM System Dimmer Compatibility List.
Warranty: 5-year limited warranty.
Labels and Listings:
ETL Listed for Wet Locations.
Meets ENERGY STAR® requirements.
IC-Rated for direct contact with insulation.
Air Tight certified in accordance with ASTM E283-2004.
California Title 24 compliant (JA8-2016-E)
About Elco LightingFounded in 1991 by its president, Steve Cohen, ELCO Lighting develops and markets lighting products for commercial and residential applications. Founded on the philosophy that high-quality commercial and residential lighting should be sold at a fair market price, Elco Lighting has designed and engineered lighting for residential and commercial spaces for almost two decades. Their product line includes track and recessed lighting fixtures, exit and emergency lights, under cabinet lighting, wall packs, step lights and more.
