ELCO Lighting ERT318CT5W

ERT318CT5W Product Description

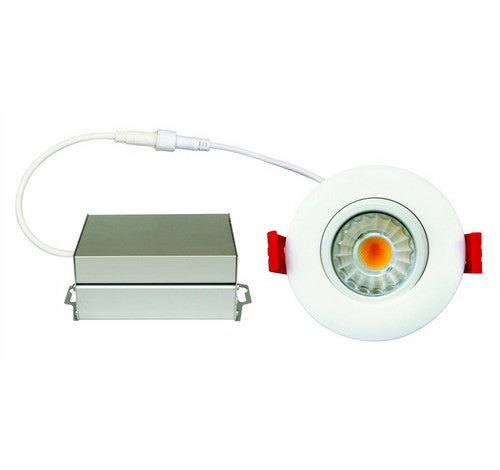

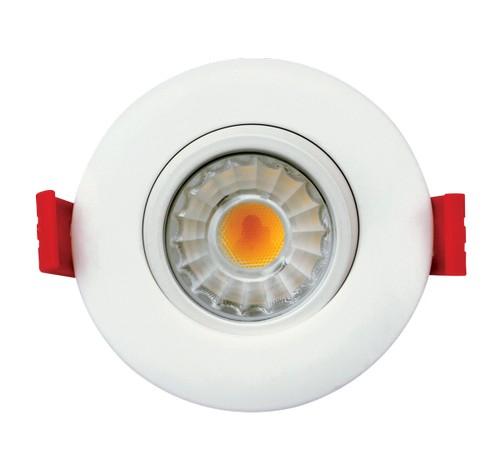

ELCO Lighting’s LED Elm™ System was designed as a slim panel LED light for new construction and remodel applications. It is offered in 4″ to 8″, in round or square with a white, nickel or bronze finish. The product was engineered to have a smooth lumen distribution ranging from a clean 500 to a powerful 2200 lumen all Wet Location listed. The item can be specified in either 3000K or 4000K to fit most residential and commercial applications. It is a slim simple light source for your everyday needs.

FEATURES:

For indoor use only
8W
CRI 90+
120V
ETL Listed
ENERGY STAR compliant
Dimmable Triac/ELV

SPECIFICATIONS:

Wattage 8W
Lumens 600 lm - 620 lm
Voltage 120V
Color Temp. 3000K - 4000K
Dimmable Triac/ELV
Lamp Type LED
CRI 90+
Damp LocationListed

Optics

Polycarbonate lens diffuses light evenly throughout space with no LED pixelation.

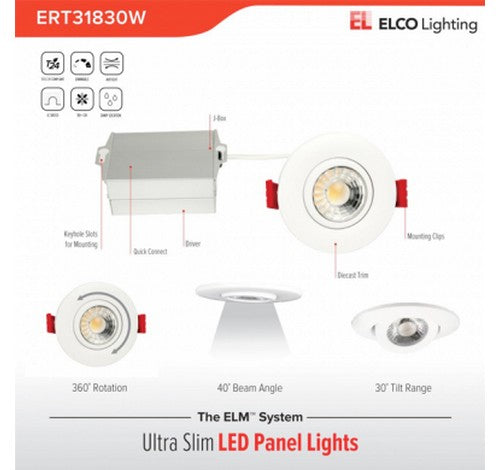

Construction

IC rated driver and fixture are tested and approved for direct contact with insulation.
Aluminum die-cast trim with durable powdercoat finish preventing rust and paint cracking. Plenum rated
cable connector to connect from module to remote driver box. Isolated driver integrated inside
aluminum remote box with two 7/8" knockouts with slots for pryout.

Installation

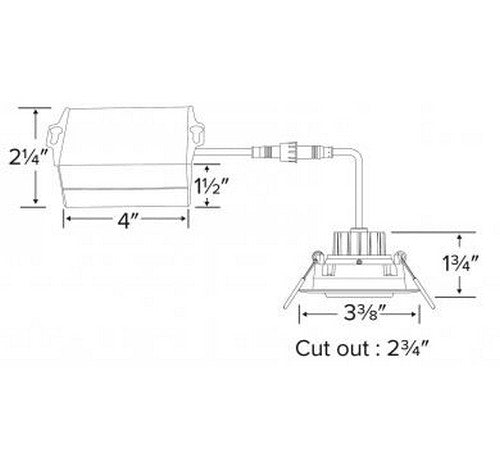

Designed for super shallow ceiling plenums without any housing. High strength steel spring clip for easy installation. Hole cut out template provided for accurate hole size for proper trim installation.

Electrical

Included driver connects directly to 120V power supply. Standard input wattage is 9W, 55 lumens per watt. Replaces 50W incandescent.

Dimmability

Works with 120V Triac and ELV type dimmers. Dims down to 10%. For full list of dimmers,refer to the ELM System Dimmer Compatability List.

Listings

ETL Listed for DAMP Locations. ENERGY STAR® Certified. IC-Rated for direct contact with insulation.
Air Tight certified in accordance with ASTM E283-2004. Califonia Title 24 Compliant (JA8-2016-E)

Warranty

5-year limited warranty.
