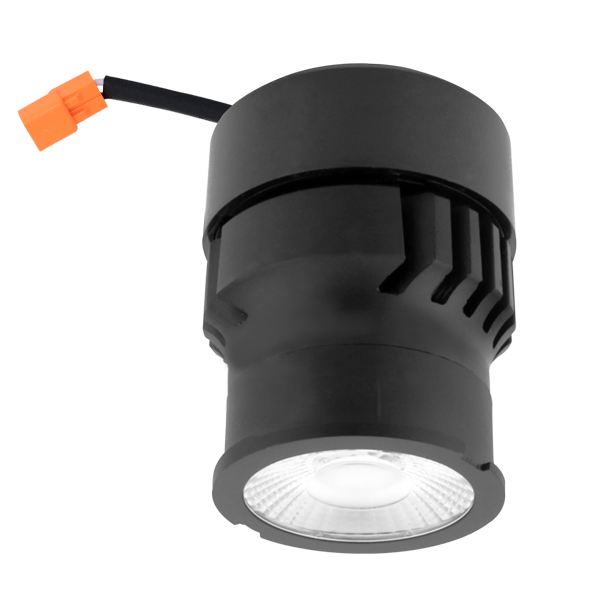

ELCO Lighting ELK1130

ELK1130 Product Description

Works with 2", 3″ and 4″ Recessed Housings and Koto Trims

Features:

Integrated 120V Dimmable Driver Triac/ELV
Excellent color rendering 95+ CRI
Sunset Module ELK09SD & ELK11SD starts from 3000K
and dims to 1800K
Works in 2", 3″ and 4″ ELCO housings with Koto™ twist-
&-lock trims
Energy Star Certified
Title 24 JA8-2019 Compliant
Standard 38° Lens installed, 25° and 60° lens included
with each module - Optional Lens: 18° (EP731C).
Optional: Louver (L45), Linear Lens (L46), Spread Lens
(L47), Clear Lens (L48), Frosted Lens (L49), Color Shifter
(L50)
Covered by US PATENT 10914465, 11092326,
and Other Patents Pending

Specifications:

Wattage: 12.5W
Lumens: 1150 lm
Voltage: 120V
Color Temp.: 3000K
Dimmable: Triac/ELV
Lamp Type: LED
Beam Angle: 38°
CRI: 95
Wet Location: UL Listed w/Wet Location Trims
Damp Location: UL Listed

Technical Details:

Optics: Frosted polycarbonate module lens diffuses light evenly throughout while reducing glare with LED
technology.

Construction: Integrated driver and light engine with quick connect. Diecast aluminum body with heat fins
allow for efficient cooling.

Installation: Twist-lock design for toolless trim installation, for use with Koto™ trims only. Can be use in 2", 3"
and 4" housings with quick connect base.

Electrical: Module connects to 120 power supply. High efficiency driver with a power factor >0.9. Start time of
less than 0.75 seconds.

Delivered Lumens:
ELK0727 770 lm/2700K ELK0730 800 lm/3000K ELK0735 830 lm/3500K ELK0740 860 lm/4000K

ELK0927 940 lm/2700K ELK0930 990 lm/3000K ELK0935 1040 lm/3500K ELK0940 1100 lm/4000K ELK09SD 940 lm/Sunset

ELK1127 1100 lm/2700K ELK1130 1150 lm/3000K ELK1135 1200 lm/3500K ELK1140 1260 lm/4000K ELK11SD 1050 lm/Sunset

LED Technology: Extremely accurate Color Rendering Index of 95+. Lumen Maintaince of 50,000 hours L70 Life based on LM80 standardized test results. Superior Thermal Management by utilizing integrated heat sink. Instant On to Full Brightness technology. No LED pixilation.

Dimmability: Works with 120V Triac and ELV type dimmers. Dims down to 10%. For full list of dimmers,
refere to the Dimmer Compatibility List. Industry leading dimming that dims smoothly with no hot spots or
flickering.
