ELCO Lighting ELK10DX30

ELK10DX30 Product Description

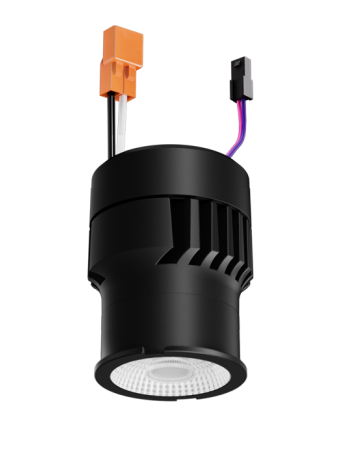

Elco Lighting 0-10V Koto™ LED Module, Color Temperature 3000K, Lumens 1000 lm, 120/277V

FEATURES :

Integrated 120/277V, 0-10V/Triac/ELV dimmable driver
Excellent color rendering 95+ CRI
Sunset Module ELK10DXSD starts from 3000K and dims to 1800K
Works in 2″, 3″, 4″, and 6″ ELCO 0-10V Housings with Koto™ twist-on trims
Energy Star Certified
Title 24 JA8-2019 Compliant
Standard 38° Lens installed, 25° and 60° lens included
with each module - Optional Lens: 18° (EP731C).
Optional: Louver (L45), Linear Lens (L46), Spread Lens (L47), Clear Lens (L48), Frosted Lens (L49), Snoot (L50),
Color Shifter (L51)
Covered by U.S. PATENTS and Patents Pending

Specifications:

Wattage 11.8W
Lumens 1000 lm
Voltage 120/277V
Color Temp. 2700K - SunsetK
Dimmable 0-10V/Triac/ELV
Lamp Type LED
Beam Angle 38°
CRI 95
Wet Location UL Listed w/Wet Location Trims
Damp Location UL Listed

Optics: Frosted polycarbonate module lens diffuses light evenly throughout while reducing glare with LED
technology.

Construction: Integrated driver and light engine with quick connect. Diecast aluminum body with heat fins
allow for efficient cooling.

Installation: Twist-on design for toolless trim installation, for use with Koto™ trims only. Can be use in 2", 3",
4" and 6" ELCO 0-10V Recessed Housings.

Electrical: Module connects to 120/277V power supply. High efficiency driver with a power factor >0.9. Start
time of less than 0.75 seconds.

LED Technology: Extremely accurate Color Rendering Index of 95+. Lumen Maintaince of 50,000 hours L70
Life based on LM80 standardized test results. Superior Thermal Management by utilizing integrated heat
sink. Instant On to Full Brightness technology. No LED pixilation.

Sunset: Sunset color temperature is our dim-to-warm LED technology that allows the color temperature to
become warmer as the product is dimmed. Our SUNSET items start at 3000K and go as low as 1800K when
dimmed. For Sunset dim technology be sure to order an item with "Sunset" in the Color Temperature (CCT)
attribute.

Dimmability: Works with 120/277V, 0-10V/Triac/ELV type dimmers. Dims down to 5%. For full list of dimmers,
refer to the Dimmer Compatibility List. Industry leading dimming that dims smoothly with no hot spots or
flickering

Listings: UL Listed for Damp Locations. UL Listed for Wet Location with Wet location trims. RoHS Compliant.

About Elco Lighting

Founded in 1991 by its president, Steve Cohen, ELCO Lighting develops and markets lighting products for commercial and residential applications. Founded on the philosophy that high-quality commercial and residential lighting should be sold at a fair market price, Elco Lighting has designed and engineered lighting for residential and commercial spaces for almost two decades. Their product line includes track and recessed lighting fixtures, exit and emergency lights, undercabinet lighting, wall packs, step lights and more.
