ELCO Lighting ELDR46ICA Mahogany System 4 Inch LED Remodel IC Airtight Housing 1200 Lumens 3000K
2 sold in last 8 hours
customers are viewing this product
ELCO Lighting ELDR46ICA

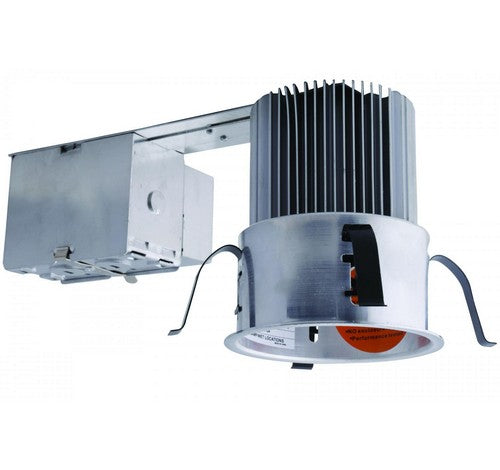

ELDR46ICA Product DescriptionELCO Lighting’s Integrated LED Mahogany System Housings are energy efficient, high output downlights with a 3 in 1 dimmable driver (Triac/ELV/0-10V, 120/277V) installed on the frame. They are available with a plethora of trims for style options and interchangeable beam angle options. The housings have the driver, LED and heat sink integrated so only a trim is required to complete the job. The Mahogany System is a great high output LED downlight for new construction and remodel applications.
FEATURES :4" LED New Construction IC Airtight Housing includes
integrated LED module and driver.
Advanced heat sink design for best heat dissipation to
maintain maximum LED life.
Battery backup driver available.
High output CREE LED COB.
Trims sold separately.
SPECIFICATIONS :Wattage 16W
Lumens 1200 lm
Color Temp. 2700K - 4000K
Lamp Type LED
Single wall IC rated for direct contact with insulation. For use in IC and non-IC conditions.
Housing has integrated driver, heat sink and LED COB mounted onto the heat sink.
Compatible trims can be used for beam angle options and design options.

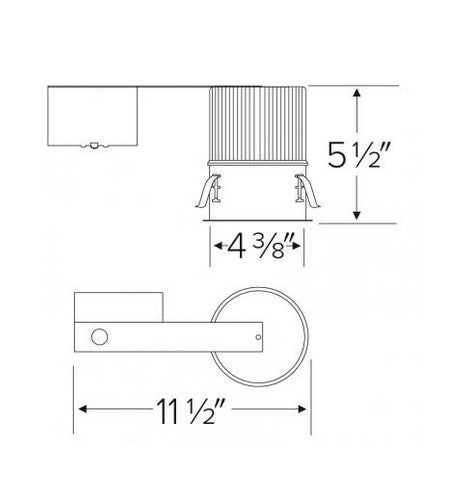

Housing adjusts in frame to accommodate up to 1 1/2" ceiling thickness.
Airtight housing with gasket to restrict airflow in accordance with ASTM E-283 air-tight requirements.
Designed for ceiling plenums where 2x6 joists or taller are used. High strength hanger bars can easily be nailed to joists. Suitable for T-grid and drop ceiling applications. See installation sheet for detailed information.
Positioned to accommodate straight conduit runs. Seven 1/2” trade size conduit knockouts, Four pry-out knockout slots for easy romex installation.
Pre Installed hanger bars with True Nail easy installation in regular lumber, engineered lumber,and Laminated Beams. Integral T-bar slots for easy installation in T-Bars. Spans up 24" and can be repositioned 90°. Score lines allow for tool-free hanger bar size reduction. Integral leveling flange allows for
single-person installation while easily aligning the housings with the joists.
Driver is rated for 120V and 277V input (120/277V). High Efficiency driver with a power factor > 0.9. Can be specified with Lutron drivers for specific applications. Optional 90 Minute 120/277V emergency backup.
Compatible with ELCO 4" LED Recessed Housing trims.
3 in 1 dimming.Triac, ELV and 0-10V dimming in one driver. 0-10V dimming down to 1% with compatible dimmer. Flicker-Free Dimming. Can be specified with Lutron drivers for specific applications. For full list of dimmers refer to the Dimmer Compatibility List.
UL Listed for Damp Location and for Wet Location with select trims. UL Listed for Direct Contact with Insulation and Combustible Material. UL Listed for Feed Through. ENERGY STAR® Certified. California Title 24.
ELCO Products are built to last. 5-year Limited warranty
About Elco LightingFounded in 1991 by its president, Steve Cohen, ELCO Lighting develops and markets lighting products for commercial and residential applications. Founded on the philosophy that high-quality commercial and residential lighting should be sold at a fair market price, Elco Lighting has designed and engineered lighting for residential and commercial spaces for almost two decades. Their product line includes track and recessed lighting fixtures, exit and emergency lights, undercabinet lighting, wall packs, step lights and more.
