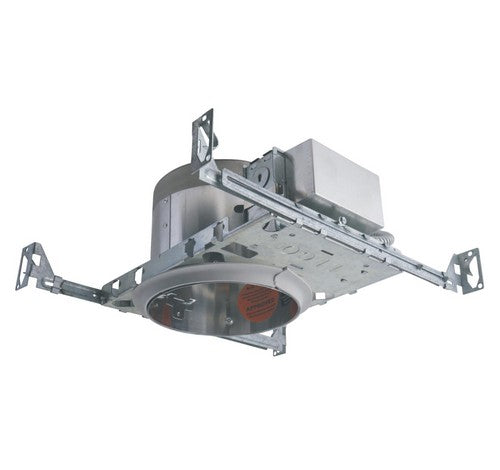

ELCO Lighting ELD76ICA Mahogany System 6 Inch Integrated LED New Construction IC Airtight Housing 3000K

2 sold in last 8 hours
ELCO Lighting
ELD76ICA
$89.93
$89.93
customers are viewing this product

ELCO Lighting ELD76ICA

ELD76ICA Product Description

ELCO Lighting’s Integrated LED Mahogany System Housings are energy efficient, high output downlights with a 3 in 1 dimmable driver (Triac/ELV/0-10V, 120/277V) installed on the frame. They are available with a plethora of trims for style options and interchangeable beam angle options. The housings have the driver, LED and heat sink integrated so only a trim is required to complete the job. The Mahogany System is a great high output LED downlight for new construction and remodel applications.

FEATURES:

6" LED New Construction IC Airtight Housing includes
integrated LED module and driver.

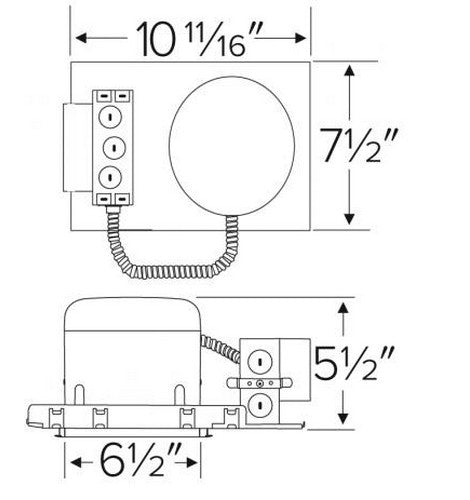

5 1/2" height allows for use in 2 x 6 construction.
Advanced heat sink design for best heat dissipation to
maintain maximum LED life.
Battery backup driver available.
Triac/ELV/0-10V.
High output CREE LED COB.
CA Title 24 compliant, meets ENERGY STAR
requirements.
Trims sold separately.

SPECIFICATIONS:

Wattage 18W
Lumens 1400 lm
Voltage 120/277V
Color Temp. 2700K - 4000K
Dimmable Triac/ELV/0-10V
Lamp Type LED
CRI 90
Damp LocationListed

Construction

Single wall IC rated for direct contact with insulation. For use in IC and non-IC conditions.
Housing has integrated driver, heat sink and LED COB mounted onto the heat sink.
Compatible trims can be used for beam angle options and design options.
Housing adjusts in frame to accommodate up to 1 1/2" ceiling thickness.
Airtight housing with gasket to restrict airflow in accordance with ASTM E-283 air-tight requirements.

Installation

Designed for ceiling plenums where 2x6 joists or taller are used. High strength hanger bars can easily be nailed to joists. Suitable for T-grid and drop ceiling applications. See installation sheet for detailed information.

Junction Box

Positioned to accommodate straight conduit runs. Seven 1/2” trade size conduit knockouts, Four pry-out knockout slots for easy romex installation.

Hanger Bars

Pre Installed hanger bars with True Nail easy installation in regular lumber, engineered lumber, and Laminated Beams. Integral T-bar slots for easy installation in T-Bars. Spans up 24" and can be repositioned 90°. Score lines allow for tool-free hanger bar size reduction. Integral leveling flange allows for single-person installation while easily aligning the housings with the joists.

Electrical

Driver is rated for 120V and 277V input (120/277V).
High Efficiency driver with a power factor > 0.9.
Can be specified with Lutron drivers for specific applications.
Optional 90 Minute 120/277V emergency backup.

Dimmability

3 in 1 dimming: Triac, ELV and 0-10V dimming in one driver.
0-10V dimming down to 1% with compatible dimmer.
Flicker-Free Dimming.

About Elco Lighting

Founded in 1991 by its president, Steve Cohen, ELCO Lighting develops and markets lighting products for commercial and residential applications. Founded on the philosophy that high-quality commercial and residential lighting should be sold at a fair market price, Elco Lighting has designed and engineered lighting for residential and commercial spaces for almost two decades. Their product line includes track and recessed lighting fixtures, exit and emergency lights, undercabinet lighting, wall packs, step lights and more.
