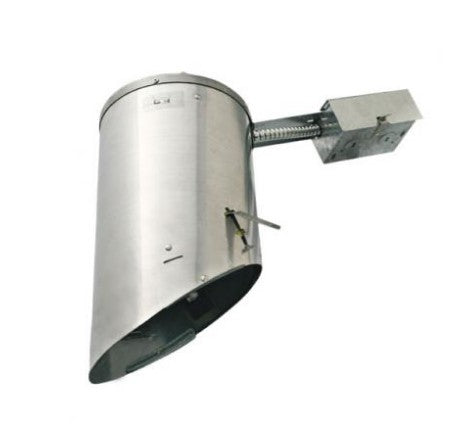

ELCO Lighting EL901RT

EL901RT Product Description

ELCO Slant allows for installation in sloped ceilings ranging from 7/12 (30°) to 12/12 (45°). Fits in 2" x 8" joist construction.

Features:

Non-IC Super Slope Remodel Housing.
Integral thermal protector guards against improper
lamping.
Designed for use in 7/12 to 12/12 sloped ceiling.
Socket: Medium base E26.
Compatible with Medium Base Incandescent, CFL or LED
Lamp MAX. 90W. Works with LED Quick-Connect Inserts
with PSA30 Socket Adapter

Specifications:

Wattage 85 or 90W
Voltage 120V
Lamp Type Medium Base (E26)
Damp LocationListed

Technical Details:

Construction:
Designed for use in 7/12 to 12/12 sloped ceiling where insulation must be kept 3" away from fixture housing.
Aluminum housing for greater heat dissipation.

Installation: Designed for ceiling plenums where 2x8 joists or taller are used. See installation sheet for detailed information.

Junction Box: Positioned to accommodate straight conduit runs. Seven 1/2” trade size conduit knockouts and One 3/4” knockout. Four true pry-out knockout slots for easy Romex installation.

Electrical:
Rated for 120V or 277V input.
For 277V step down to 120V housing consult factory.

Trims: Compatible with EL602, EL603, EL604, EL606, EL607, EL608.

Listings: UL Listed for Damp Location.
UL Listed for Feed Through.
