ELCO Lighting EL8SQ

EL8SQ Product Description

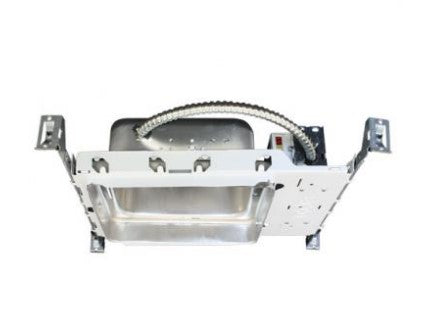

ELCO Lighting EL8SQ 8 Inches Incandescent Square Housing Watt 75W, Voltage 120V

Features:

Square Housing, Airtight (with lensed trims).
Single wall aluminum construction.
Integral thermal protector.
Supplied with captive bar hangers for 24" max joist
spacing.
Lamp: 120V 75W MAX A19.
UL listed for Damp Location and for Feed Through.

Specifications

Wattage 75W
Voltage 120V
Lamp Type Medium Base (E26)
Damp LocationListed

Technical Details:

Construction:
• Housing adjusts in frame to accommodate up to 1 1/4" ceiling thickness.
• Airtight housing with lensed trims to restrict airflow in accordance with ASTM E-283 air-tight
requirements.
• Aluminum housing for greater heat dissipation. Stamped galvanized steel frame.

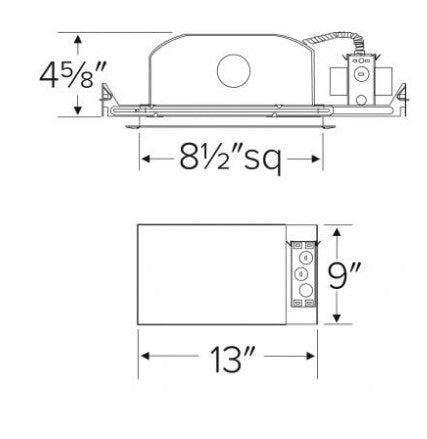

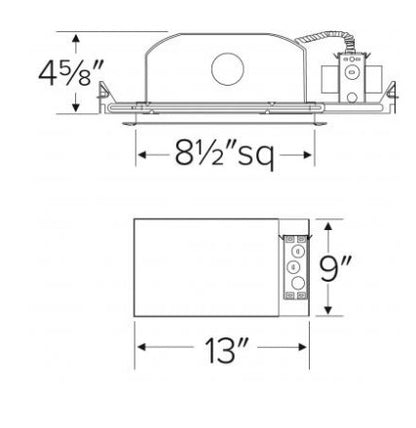

Installation: Designed for ceiling plenums where 2x8 joists or taller are used. High strength hanger bars can easily be nailed to joists. Maximum hole cutout is 8 1/2". Suitable for T-grid and drop ceiling applications. See installation sheet for detailed information.

Junction Box: Positioned to accommodate straight conduit runs. Seven 1/2" trade size pryout conduit knockouts, 4 Romex pryouts with strain relief.

Hanger Bars: Pre-installed hanger bars with True Nail facilitate easy installation in regular lumber, engineered lumber, and laminated beams. Integral T-bar slots for easy installation in T-grids. Spans up to 24" and can be repositioned 90°. Score lines allow for tool-free hanger bar size reduction. Integral leveling flange allows for single-person installation while aligning the housing with the joists.

Electrical: Input Voltage: 120V AC. Thermally protected against improper lamping.

Trims: Compatible with EL10W, EL11W, EL15W, EL88130W.

Lamp: Designed for use with Medium Base (E26) PAR lamps up to 75W.

Listings:
• UL Listed for Damp Location.
• UL Listed for Feed Through.

Warranty: ELCO Lighting warrants products will be free from defects in materials and workmanship for a period of 3 years.

About Elco Lighting:

Founded in 1991 by its president, Steve Cohen, ELCO Lighting develops and markets lighting products for commercial and residential applications. Founded on the philosophy that high-quality commercial and residential lighting should be sold at a fair market price, Elco Lighting has designed and engineered lighting for residential and commercial spaces for almost two decades. Their product line includes track and recessed lighting fixtures, exit and emergency lights, under cabinet lighting, wall packs, step lights and more.
