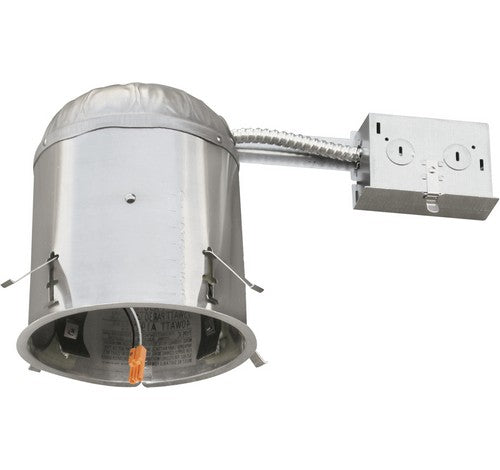

ELCO Lighting EL770RICA-7 24W 6 Inch IC Airtight Remodel Dedicated Housing 120 or 277V

2 sold in last 8 hours
ELCO Lighting
EL770RICA-7
$47.44
$47.44
customers are viewing this product

ELCO Lighting EL770RICA-7

EL770RICA-7 Product Description

Single Wall IC Airtight Construction, for use in insulated ceilings.
Meets Title 24 requirements. ENERGY STAR® Certified.
Trims and inserts sold separately.

SPECIFICATIONS :

Wattage : 24W
Voltage : 120/277V or 277V
Lamp Type : LED
Damp Location : Listed

Construction:
Single wall IC rated for direct contact with insulation, for use in IC or non-IC conditions.
Housing adjusts in frame to accommodate up to 1 1/4" ceiling thickness.
Airtight housing with gasket to restrict airflow in accordance with ASTM E-283 air-tight requirements.
Steel housing for greater heat dissipation. Stamped galvanized steel frame.

Installation: Designed for ceiling plenums where 2x8 joists or taller joists are used. Maximum hole cutout is 6 1/2". Suitable for T-grid and drop ceiling applications. See installation sheet for detailed information.

Junction Box: Positioned to accommodate straight conduit runs. Seven 1/2" trade size conduit knockouts, four 3/4" knockouts with pry-out slots. 4 Romex pryouts with strain relief.

Electrical:
Input Voltage: 120V AC.
Inherently protected.

Trims: Compatible with ELCO 6" LED Inserts.

Dimmability:
Dimmability based on lamp.

Lamp: Designed for use with ELCO 6" LED inserts, LED modules, or PSA37 with 6" MR16 trims.

Warranty: ELCO Lighting warrants products will be free from defects in materials and workmanship for a period of 3 years.

Labels And Listings :
UL Listed for Damp Location.
UL Listed for Wet Location with select trims.
UL Listed for Feed Through.
UL Listed for Direct Contact with Insulation and Combustible Material.
Airtight per ASTM E-283.
Install a JA8-2016-E lamp/luminaire for Title 24 Compliance.
