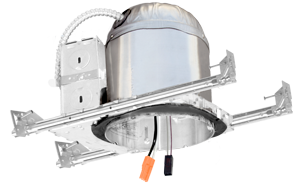

ELCO Lighting EL770ICDXA

EL770ICDXA Product Description

6″ 0-10V IC New Construction Dedicated LED Housing

FEATURES:

Wired for 0-10V Dimming
Single Wall IC Airtight rated for direct contact with
insulation
120/277V Input
Meets restricted air flow requirements (per ASTM E-283)
UL listed for direct contact with insulation
UL listed for wet locations with wet location inserts
UL listed for feed through
CA Title 24 compliant

SPECIFICATIONS:

Voltage 120/277V
Lamp Type LED

Construction: Shallow Single wall IC rated for direct contact with insulation, for use in IC or non-IC conditions.Housing adjusts in frame to accommodate up to 1 1/4" ceiling thickness. Airtight housing with gasket to restrict airflow in accordance with ASTM E-283 air-tight requirements. Steel housing for greater heat dissipation. Stamped galvanized steel frame.

Installation: Designed for ceiling plenums where 2x6 joists or taller joists are used. High strength hanger bars can easilty be nailed to joists. Maximum hole cutout is 6 1/4". Suitable for T-grid and drop ceiling applications. See installation sheet for detailed information.

Junction Box: Positioned to accommodate straight conduit runs. Seven 1/2" trade size conduit knockouts, four 3/4" knockouts. Pry-out knockout slots. 4 Romex pryouts with strain relief.

Hanger Bars: Pre-installed hanger bars with TrueNail facilitate easy installation in regular lumber, engineered lumber, and laminated beams. Integral T-bar slots for easy installation in T-bars. Spans up to 24" and can be repositioned 90°. Score lines allow for tool-free hanger bar size reduction. Integral leveling flange allows for
single-person installation while aligning the housings with the joists. Hanger bars ordered separately for EL760ICDXA-B (Butterfly Bracket).

Electrical: Input Voltage: 120/277V. Inherently protected. Fixture rated for 24W MAX. LED insert

Trims: Compatible with ELCO 6" 0-10V LED Inserts
.
Dimmability: Dimmability based on insert used. See PLY™ System LED inserts.

Lamp: Designed for use with ELCO 6" PLY™ LED inserts.

Listings: UL Listed for Damp Location. UL Listed for Wet Location with select trims. UL Listed for Feed Through. UL Listed for Direct Contact with Insulation and Combustible Material. Airtight per ASTM E-283. JA8-2016-E Title 24 Compliant.

Warranty: ELCO Lighting warrants products will be free from defects in materials and workmanship for a period of 5 years
