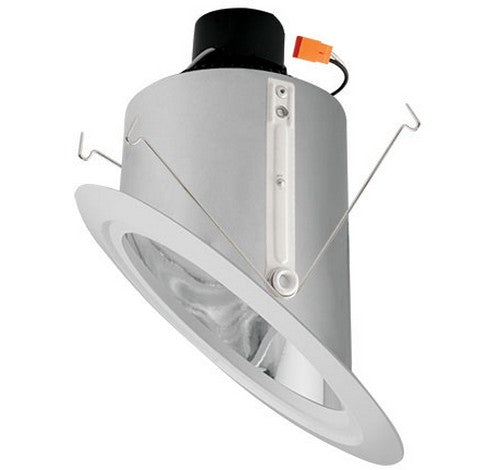

ELCO Lighting EL76230C Clear LED 6" Super Sloped Recessed Lighting Reflector Insert 120V
2
sold in last
8
hours
EL76230C
$99.37
customers are viewing this product
PRODUCT DESCRIPTION
Sloped Ceiling LED Inserts feature an integral gimbal for ±25° adjustability.
Compatible with most incandescent and electronic low voltage dimmers.
ENERGY STAR® Certified. California Title 24 (JA8-2016).
Life Span: 50,000 hours L70.
SPECIFICATIONS :
Wattage 15W - 18W
Lumens 1050 lm - 1200 lm
Voltage 120V
Color Temp. 2700K - 3000K
Dimmable Triac/ELV
Lamp Type LED
CRI 90+
Damp LocationListed
Optics: LED light engine has frosted polycarbonate lens with reflector to diffuse light evenly throughout while reducing glare.
Construction: Deep phenolic reflector trim with torsion springs to be held into the housing. High quality powder coat finish preventing rust and paint cracking on metal parts. Integral gimbal allows for 25° adjustability to match slope.
Installation: Designed to install into ELCO 6” Sloped ceiling housing with torsion springs brackets. For retrofitting other manufacturers sloped ceiling cans always test the product to ensure proper fit and function.
Electrical:
Driver connects to 120VAC power supply.
High efficiency, high power factor > 0.9 driver.
LED Technology:
Accurate color rendering with 90+ CRI.
Lumen Maintaince of 50,000 hours L70 Life based on LM80 standardized test results.
Superior Thermal Management by utilizing aluminum die cast heat sink.
Housings: Compatible with EL970ICA, EL970RICA.
Dimmability:
Dimmable with most standard TRIAC and ELV type dimmers.
Dimming range of 100% down to 10%. Dimming range may vary depending on dimmer model.
For full list of dimmers refer to the Dimmer Compatibility List.
Listings:
UL Listed for Damp Location.
ENERGY STAR® Certified.
California Title 24 (JA8-2016-E).
Warranty: ELCO Products are built to last. 5-year Limited warranty.
Compatible with most incandescent and electronic low voltage dimmers.
ENERGY STAR® Certified. California Title 24 (JA8-2016).
Life Span: 50,000 hours L70.
SPECIFICATIONS :
Wattage 15W - 18W
Lumens 1050 lm - 1200 lm
Voltage 120V
Color Temp. 2700K - 3000K
Dimmable Triac/ELV
Lamp Type LED
CRI 90+
Damp LocationListed
Optics: LED light engine has frosted polycarbonate lens with reflector to diffuse light evenly throughout while reducing glare.
Construction: Deep phenolic reflector trim with torsion springs to be held into the housing. High quality powder coat finish preventing rust and paint cracking on metal parts. Integral gimbal allows for 25° adjustability to match slope.
Installation: Designed to install into ELCO 6” Sloped ceiling housing with torsion springs brackets. For retrofitting other manufacturers sloped ceiling cans always test the product to ensure proper fit and function.
Electrical:
Driver connects to 120VAC power supply.
High efficiency, high power factor > 0.9 driver.
LED Technology:
Accurate color rendering with 90+ CRI.
Lumen Maintaince of 50,000 hours L70 Life based on LM80 standardized test results.
Superior Thermal Management by utilizing aluminum die cast heat sink.
Housings: Compatible with EL970ICA, EL970RICA.
Dimmability:
Dimmable with most standard TRIAC and ELV type dimmers.
Dimming range of 100% down to 10%. Dimming range may vary depending on dimmer model.
For full list of dimmers refer to the Dimmer Compatibility List.
Listings:
UL Listed for Damp Location.
ENERGY STAR® Certified.
California Title 24 (JA8-2016-E).
Warranty: ELCO Products are built to last. 5-year Limited warranty.
