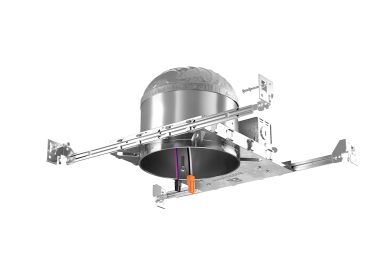

Elco Lighting EL760ICDXA 6" Shallow New Construction Dedicated LED Housing, 120/277V

2 sold in last 8 hours
ELCO Lighting
EL760ICDXA
$21.75
$21.75
customers are viewing this product

ELCO Lighting EL760ICDXA

EL760ICDXA Product Description

Elco Lighting 6" Shallow New Construction Dedicated LED Housing, 120/277V

FEATURES:

Wired for 0-10V Dimming
Airtight rated
120/277V Input
Meets restricted air flow requirements (per ASTM E-283)
Shallow for Non-IC Application

SPECIFICATIONS:

Voltage 120/277V
Dimmable 0-10V/Triac/ELV
Lamp Type LED

Construction: Shallow Single Wall IC Rated for direct contact with insulation, for use in IC or Non-IC conditions. Housing adjusts in frame to accommodate up to 1 1/4" ceiling thickness. Airtight housing with gasket to restrict airflow in accordance with ASTM E-283 air-tight requirements. Steel housing for greater heat
dissipation. Stamped galvanized steel frame.

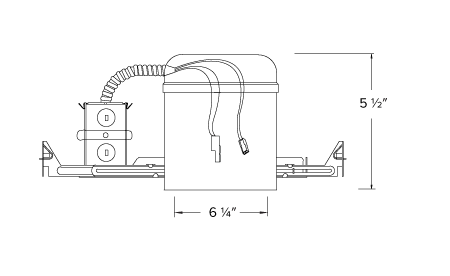

Installation: Designed for ceiling plenums where 2x6 joists or taller joists are used. High strength hanger bars can easilty be nailed to joists. Maximum hole cutout is 6 1/4". Suitable for T-grid and drop ceiling applications. See installation sheet for detailed information.

Junction Box: Positioned to accommodate straight conduit runs. Seven 1/2" trade size conduit knockouts, four 3/4" knockouts. Pry-out knockout slots. 4 Romex pryouts with strain relief.

Hanger Bars: Pre-installed hanger bars with TrueNail facilitate easy installation in regular lumber, engineered lumber, and laminated beams. Integral T-bar slots for easy installation in T-bars. Spans up to 24" and can be repositioned 90°. Score lines allow for tool-free hanger bar size reduction. Integral leveling flange allows for
single-person installation while aligning the housings with the joists.

Electrical: Input Voltage: 120/277V. Inherently protected.

Trims: Compatible with ELCO 6" 0-10V LED Inserts and 0-10V Koto™ Module.

Dimmability: Dimmability based on insert used

Listings: UL Listed for Damp Location. UL Listed for Wet Location with select trims. UL Listed for Feed Through. UL Listed for Direct Contact with Insulation and Combustible Material. Airtight per ASTM E-283. JA8-2016-E Title 24 Compliant.

Warranty: ELCO Lighting warrants products will be free from defects in materials and workmanship for a period of 5 years
