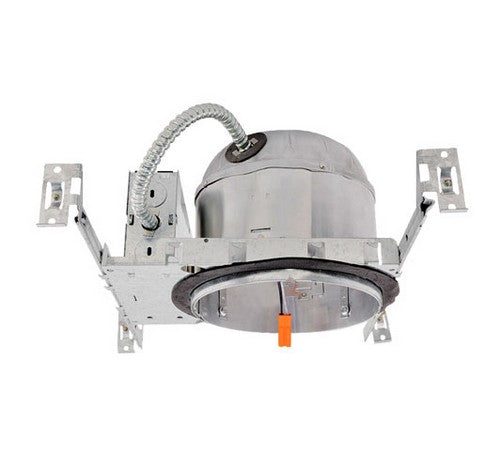

ELCO Lighting EL760ICA

EL760ICA Product Description

Introducing our modern and energy efficient line of LED Inserts Recessed Lights and Ceiling Mounts Fixtures. All of our LED products are manufactured to the highest standard from the LED chip to the driver. Our line of LED Inserts and Ceiling Mount products are all 90+ CRI and have a life span of 50,000 hours L70. This product line has been engineered to dim smoothly and flicker-free with a wide range of dimmers.
Our Housings and Inserts are UL listed as IC Airtight for use in insulated ceilings with ELCO LED Inserts. They can be installed in residential wood structures or commercial building drop ceilings.

FEATURES :

Shallow Single Wall IC Airtight Construction, for use in insulated ceilings.
Transformer (EL770ICA-7 only): 277V to 120V step-down transformer.
Meets Title 24 requirements. ENERGY STAR® Certified.
Trims and inserts sold separately.

SPECIFICATIONS :

Wattage : 8W
Voltage : 120/277V or 277V
Lamp Type : LED
Damp Location : Listed

Construction:
Shallow Single wall IC rated for direct contact with insulation, for use in IC or non-IC conditions.
Housing adjusts in frame to accommodate up to 1 1/4" ceiling thickness.
Airtight housing with gasket to restrict airflow in accordance with ASTM E-283 air-tight requirements.
Steel housing for greater heat dissipation. Stamped galvanized steel frame.

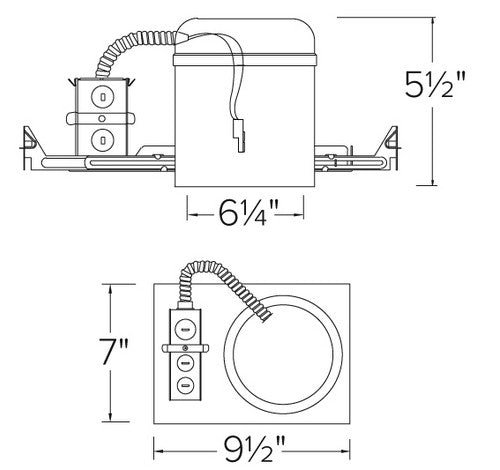

Installation: Designed for ceiling plenums where 2x6 joists or taller joists are used. High strength hanger bars can easilty be nailed to joists. Maximum hole cutout is 6 1/4". Suitatble for T-grid and drop ceiling applications. See installation sheet for detailed information.

Junction Box: Positioned to accommodate straight conduit runs. Seven 1/2" trade size conduit knockouts, four 3/4" knockouts. Pry-out knockout slots. 4 Romex pryouts with strain relief.

Hanger Bars: Pre-installed hanger bars with TrueNail facilitate easy installation in regular lumber, engineered lumber, and laminated beams. Integral T-bar slots for easy installation in T-bars. Spans up to 24" and can be repositioned 90°. Score lines allow for tool-free hanger bar size reduction. Integral leveling flange allows for single-person installation while aligning the housings with the joists.

Electrical:
Input Voltage: 120V AC.
Inherently protected.

Trims: Compatible with ELCO 6" LED Inserts.

Dimmability:
Dimmability based on lamp.

Lamp: Designed for use with ELCO 6" LED inserts, LED modules, or PSA37 with 6" MR16 trims.

Warranty: ELCO Lighting warrants products will be free from defects in materials and workmanship for a period of 5 years.

Labels And Listings :
UL Listed for Damp Location.
UL Listed for Wet Location with select trims.
UL Listed for Feed Through.
UL Listed for Direct Contact with Insulation and Combustible Material.
Airtight per ASTM E-283.
Install a JA8-2016-E lamp for Title 24 Compliance.
