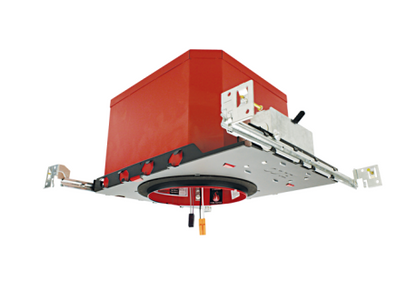

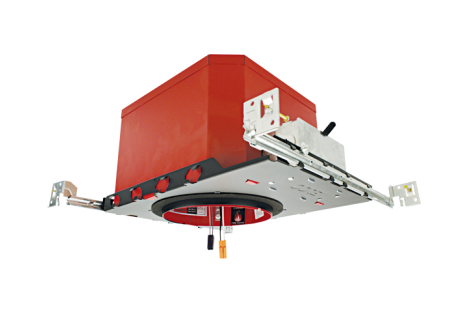

Elco Lighting EL75FICDXAS 6" LED Shallow Fire Rated ICA New Construction Housing, 120/277V, 0-10V/Triac/ELV

ELCO Lighting EL75FICDXAS

EL75FICDXAS Product Description

Elco Lighting  6" LED Shallow Fire Rated ICA New Construction Housing, 120/277V, 0-10V/Triac/ELV

FEATURES:

24W MAX.
2-Hour Fire Rated housing
Wired for 0-10V Dimming
IC Airtight Rated for direct contact with insulation
120/277V Input , 60Hz
Meets Title 24 High Efficacy requirements
Housing Meets Restricted Air Flow requirements (per ASTM E-283)
UL Listed for damp locations
UL Listed for wet locations

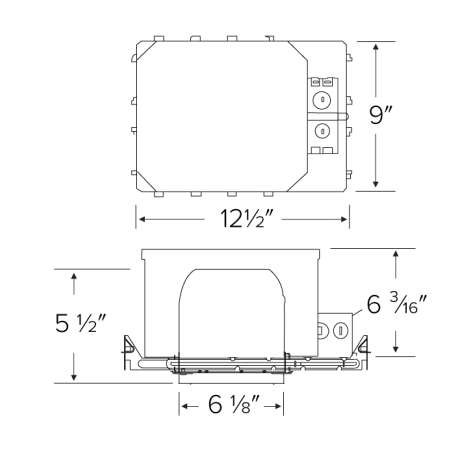

Heigh: 6 3/16″

SPECIFICATIONS:

Wattage 24W
Voltage 120/277V
Dimmable 0-10V/Triac/ELV
Damp Location Listed

Junction Box: Positioned to accommodate straight conduit runs. Two 3/4” knockouts, Seven 1/2” trade size conduit knockouts, One 3/8" knockout. Four Pry-out knockout slots for easy romex installation.

Emergency Battery Pack: Optional 90 minute battery pack available with test indicator switch. Note that double wall housings require Access From Above Ceiling for Battery Maintenance.

Hanger Bars: Pre Installed hanger bars with True Nail easy installation in regular lumber, engineered lumber, and Laminated Beams. Integral T-bar slots for easy installation in T-Bars. Spans up 24" and can be repositioned 90°. Score lines allow for tool-free hanger bar size reduction. Integral leveling flange allows for single-person installation while easily aligning the housings with the joists.

Lamp: Designed for use with ELCO 6" 0-10V LED inserts and 0-10V Koto™ Module

Listings: UL Listed for Damp Location and for Wet Location with select trims. UL Listed for Direct Contact with Insulation and Combustible Material. UL Listed for Feed Through.
