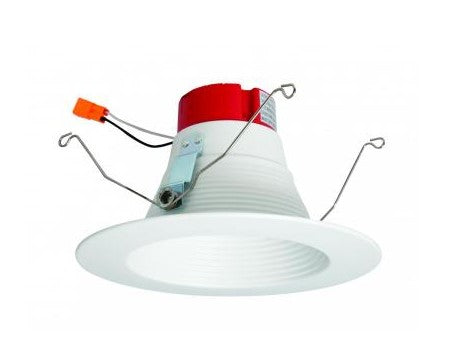

ELCO Lighting EL621CT5W

EL621CT5W Product Description

ELCO Lighting's inserts are engineered with energy-efficient LED technology that produces even illumination with an incredible 93+ CRI. Designed to be used for New Construction, Remodel, and Retrofit applications, these inserts are rated for a life of 50,000 hours, and meet the Title 24 and Energy Star requirements. Suitable for IC and Non-IC housings manufactured by ELCO or others.

Features:

Fits ELCO 5" or 6" Dedicated LED Recessed Housings.
Includes Medium Base Adapter for retrofitting existing
E26 Base housings.
Soft white lens provides smooth lumen distribution and
eliminates LED pixelation.
Includes Medium Base Adapter (PSA30) for retrofitting
existing E26 Base housings.
Deep set LED trim reduces glare while providing area
illumination.
Energy Star Certified.
Title 24 JA8-2019 Compliant.
Life Span of 50,000 hours L70.

Specifications:

Wattage 14W - 15W
Lumens 1000 lm
Voltage 120V
Color Temp. 2700K - 2700K, 3000K,
3500K, 4000K, 5000K
Dimmable Triac/ELV
Lamp Type LED
CRI 93+
Wet Location Listed

Technical Details:

Optics: Frosted polycarbonate lens diffuses light evenly throughout while reducing glare with LED Array technology.

Construction: For use in IC and non-IC housings. Spun Aluminum for greater heat dissipation. High quality powder coat finish preventing rust and paint cracking.

Installation: Includes PSA30 medium base adapter for retrofitting existing housings. Quick connect for use with ELCO housings EL570ICA, EL570RICA, EL56FICA. PSA30 (Medium Base Socket adapter) allows for use with EL99ICA, EL99RICA, EL99FICA, EL99A, EL99RA. PSA31 (GU10 Socket Adapter, not included) allows for use with EL49ICA, EL49A, EL49RA. PSA35 (GU24 Socket Adapter, not included) allows for use with EL99ICA-G24, EL99RICA-G24. Can be used in IC and non-IC housings.

Electrical: Driver connects to 120V power supply. High Efficiency driver with a power factor > 0.9. Ambient operating temperature -40°F (-40°C) to 104°F (40°C). Input wattage of 14W. Start time of less than .75 seconds.

LED Technology:
Extremely accurate color rendering with 93+ CRI.
Lumen Maintaince of 50,000 hours L70 Life based on LM80 standardized test results.
Superior Thermal Management by utilizing integral heat sink.
Instant On to Full Brightness.
No LED pixelation.

Dimmability: Works with 120V Triac and ELV type dimmers . Dims down to 10%. For full list of dimmers refer to the Dimmer Compatibility List. Industry leading dimming. Dims smoothly with no hot spots or flickering.

Listings:
UL Listed for Wet Location.
RoHS Compliant.
ENERGY STAR® Certified.
Title 24 JA8-2019 Compliant.
Warranty: ELCO Products are built to last with a 5-year Limited Warranty.

About Elco Lighting:

Founded in 1991 by its president, Steve Cohen, ELCO Lighting develops and markets lighting products for commercial and residential applications. Founded on the philosophy that high-quality commercial and residential lighting should be sold at a fair market price, Elco Lighting has designed and engineered lighting for residential and commercial spaces for almost two decades. Their product line includes track and recessed lighting fixtures, exit and emergency lights, under cabinet lighting, wall packs, step lights and more.
