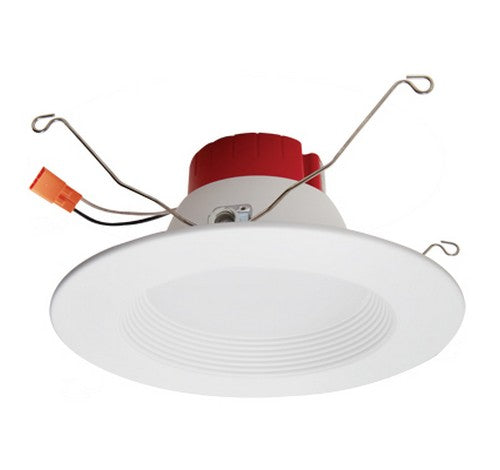

ELCO Lighting EL61030W 10W - 20W 5 Inch or 6 Inch Round LED Baffle Insert White Finish 3000K
2 sold in last 8 hours
customers are viewing this product
ELCO Lighting EL61030W
EL61030W Product Description
ELCO Lighting's inserts are engineered with energy-efficient LED technology that produces even illumination with an incredible 90+ CRI. Designed to be used for New Construction, Remodel, and Retrofit applications, these inserts are rated for a life of 50,000 hours, and meet the Title 24 and Energy Star requirements. Suitable for IC and Non-IC housings manufactured by ELCO or others.
FEATURES :Fits ELCO 5" or 6" Dedicated LED Recessed Housings, Regular and Shallow.
Includes Medium Base Adapter for retrofitting existing E26 Base housings.
Soft white lens provides smooth lumen distribution and eliminates LED pixelation.
Deep set LED trim reduces glare while providing area illumination.
CA Title 24, ENERGY STAR, JA8-2016-E.
Lifespan of 50,000 hours L70.
SPECIFICATIONS :Wattage : 10W - 20W
Lumens : 725 lm - 1400 lm
Voltage : 120V
Color Temp. : 2700K - 4000K
Dimmable : Triac/ELV
Lamp Type : LED
Beam Angle : 90°
CRI : 90+
Wet Location : Listed
Optics: Frosted polycarbonate lens diffuses light evenly throughout while reducing glare with LED Array technology.
Construction: For use in IC and non-IC housings. Spun Aluminum for greater heat dissipation. High quality powder coat finish preventing rust and paint cracking.
Installation: Includes PSA30 medium base adapter for retrofitting existing housings. Quick connect for use with ELCO housings EL570ICA, EL570RICA, EL56FICA, EL560ICA, EL560RICA, EL770ICA, EL770RICA, EL760ICA, EL760RICA, EL76FICA. Can be used in IC and non-IC housings.
Electrical: Driver connects to 120V power supply. High Efficiency driver with a power factor > 0.9. Start time of less than .75 seconds.
LED Technology: Extremely accurate color rendering with 90+ CRI. Lumen Maintaince of 50,000 hours L70 Life based on LM80 standardized test results. Superior Thermal Management by utilizing integral heat sink. Instant On to Full Brightness. No LED pixelation.
Dimmability: Works with 120V Triac and ELV type dimmers . Dims down to 10%. For full list of dimmers refer to the Dimmer Compatibility List. Industry leading dimming. Dims smoothly with no hot spots or flickering.
Warranty: ELCO Products are built to last with a 5-year Limited Warranty.
Labels and Listings:
UL Listed for Damp Location.
ENERGY STAR® Certified.
California Title 24 JA8-2016-E.
About Elco LightingFounded in 1991 by its president, Steve Cohen, ELCO Lighting develops and markets lighting products for commercial and residential applications. Founded on the philosophy that high-quality commercial and residential lighting should be sold at a fair market price, Elco Lighting has designed and engineered lighting for residential and commercial spaces for almost two decades. Their product line includes track and recessed lighting fixtures, exit and emergency lights, undercabinet lighting, wall packs, step lights and more.
