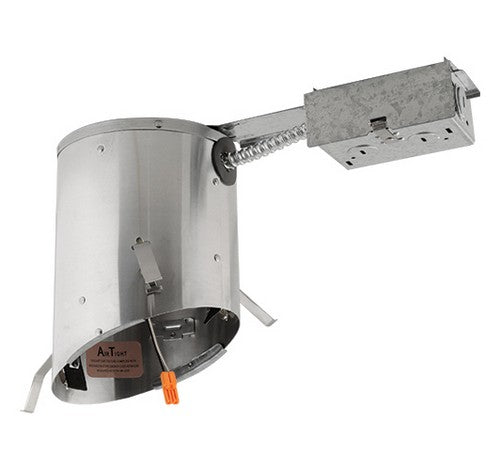

ELCO Lighting EL590RICA 5" Dedicated LED Sloped IC Airtight Remodel Recessed Lighting Fixture
2
sold in last
8
hours
EL590RICA
$28.56
customers are viewing this product
PRODUCT DESCRIPTION
Allows for use in 2" x 8" construction.
Designed for use in 2/12 to 6/12 sloped ceiling.
California Title 24 (JA8-2016-E).
SPECIFICATIONS :
Wattage 24W
Voltage 120V
Damp LocationListed
Construction:
IC Rated for Direct Contact with Insulation.
Designed for use in 2/12 to 6/12 sloped ceiling.
Housing adjusts to accommodate up to 1 1/4” ceiling thickness.
Aluminum housing for greater heat dissipation.
Installation: Designed for ceiling plenums where 2x8 joists or taller are used. Template for hole cutout is provided with each housing. See installation sheet for detailed information.
Junction Box: Positioned to accommodate straight conduit runs. Seven 1/2” trade size conduit knockouts and One 3/4” knockout. Four true pry-out knockout slots for easy Romex installation.
Electrical:
Connection is rated for 120V or 277V input.
For 277V step down to 120V housing consult factory.
Listings:
UL Listed for Damp Location.
UL Listed for Direct Contact with Insulation and Combustible Material.
UL Listed for Feed Through.
AirTight Per ASTM E-283.
California Title 24 (JA8-2016-E).
Warranty: ELCO Products are built to last. 5-year Limited warranty.
Designed for use in 2/12 to 6/12 sloped ceiling.
California Title 24 (JA8-2016-E).
SPECIFICATIONS :
Wattage 24W
Voltage 120V
Damp LocationListed
Construction:
IC Rated for Direct Contact with Insulation.
Designed for use in 2/12 to 6/12 sloped ceiling.
Housing adjusts to accommodate up to 1 1/4” ceiling thickness.
Aluminum housing for greater heat dissipation.
Installation: Designed for ceiling plenums where 2x8 joists or taller are used. Template for hole cutout is provided with each housing. See installation sheet for detailed information.
Junction Box: Positioned to accommodate straight conduit runs. Seven 1/2” trade size conduit knockouts and One 3/4” knockout. Four true pry-out knockout slots for easy Romex installation.
Electrical:
Connection is rated for 120V or 277V input.
For 277V step down to 120V housing consult factory.
Listings:
UL Listed for Damp Location.
UL Listed for Direct Contact with Insulation and Combustible Material.
UL Listed for Feed Through.
AirTight Per ASTM E-283.
California Title 24 (JA8-2016-E).
Warranty: ELCO Products are built to last. 5-year Limited warranty.
